Description

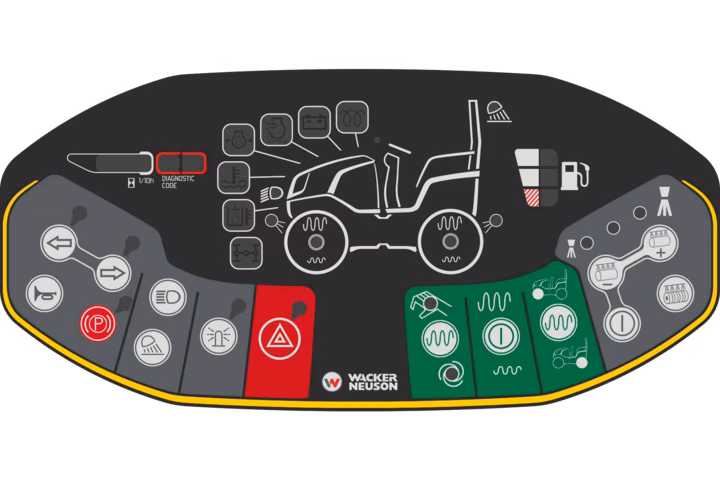

The RC70 single drum soil compactor offers optimum compaction results with excellent maneuverability, gradeability and stability. The compact design provides for an excellent view of the work area and drum from the operator seat. The spacious operator platform is isolated from vibration for comfortable operation. It also features plenty of legroom and simple operation via an intuitively designed display and joystick. The RC soil compactors are ideal for commercial and residential projects, secondary roads and parking lots.
Specifications
Manufacturer
Wacker Neuson
Model
RC70
Year
2022
Category
Compactors
Subcategory
Single Drum Soil Compactors
Amplitude front, level II mm
0.66
Amplitude front, level I mm
1.71
Amplitude front, level I in
0.067 in
Amplitude front, level II in
0.026 in
Axle load Front lb
8,774 lb
Axle load Front kg
3,980
Axle load Rear lb
5,647 lb
Axle load Rear kg
2,560
Centrifugal force front, level II kN
95
Centrifugal force front, level I kN
125
Centrifugal force front, level I lbf
28,100 lbf
Centrifugal force front, level II lbf
21,360 lbf
Drum diameter in
47.4 in
Drum diameter mm
1,216
Drum type
smooth/undivided
Drum width in
66.1 in
Drum width mm
1,680
Frequency front, level I Hz
30
Frequency front, level II Hz
42
Frequency front, level I Vpm
1,800 Vpm
Frequency front, level II Vpm
2,520 Vpm

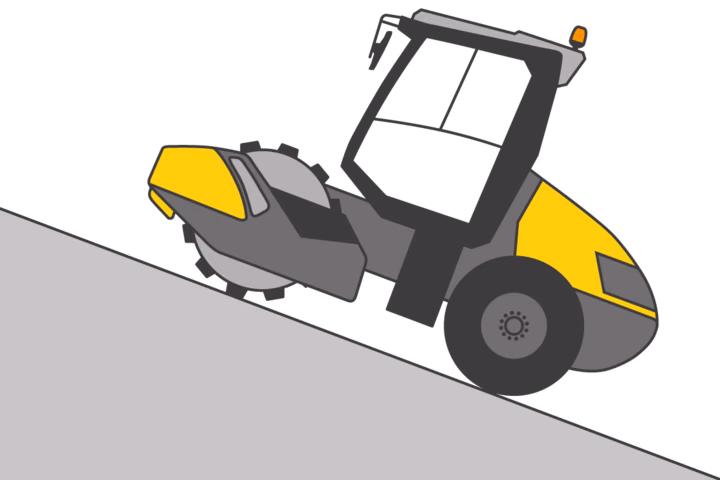

Gradeability with vibration %
55
Gradeability without vibration %
60
Tank capacity US gal
32 gal
Tank capacity l
123
Total linear load lb/in
135.3 lb per in
Total linear load N/mm
23.7
Traction drive
hydrostatic with wheel motors
Travel speed Operation, max. mph
3.7 mph
Travel speed Operation, max. km/h
6
Travel speed Transport gear, max. mph
7.8 mph
Travel speed Transport gear, max. km/h
12.5
Turning radius mm
3,310
Curb clearance left in
3.1
Curb clearance left mm
80
Curb clearance right in
2.7
Curb clearance right mm
70
Ground clearance Middle in
12.4
Ground clearance Middle mm
317
L x W x H in
173.6 x 72.6 x 115.2
L x W x H mm
4409 x 1844 x 2925
Operating weight max. kg
7,580
Operating weight max. lb
16,711
Operating weight with cabin kg
6,540
Operating weight with cabin lb
14,418
Operating weight with roll-over protective structure kg
6,320
Operating weight with roll-over protective structure lb
13,933
Operating width max. in
66.1
Operating width max. mm
1,680
Turning radius in
130.3
