Description

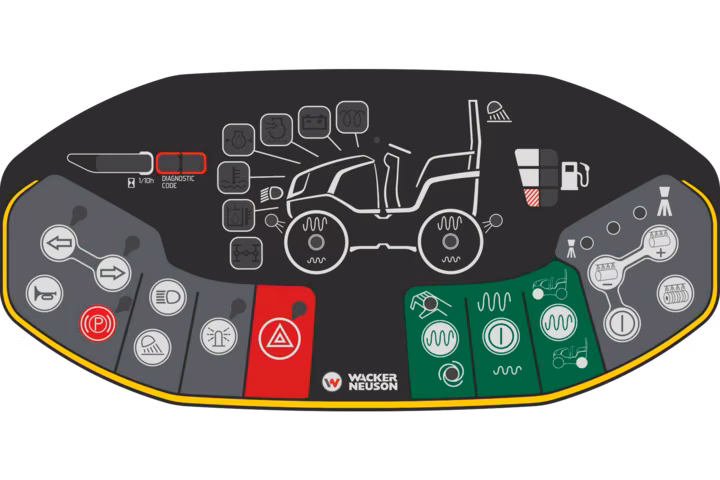

The RC70 single drum soil compactor offers optimum compaction results with excellent maneuverability, gradeability and stability. The compact design provides for an excellent view of the work area and drum from the operator seat. The spacious operator platform is isolated from vibration for comfortable operation. It also features plenty of legroom and simple operation via an intuitively designed display and joystick. The RC soil compactors are ideal for commercial and residential projects, secondary roads and parking lots.
Specifications
Manufacturer
Wacker Neuson
Model
RC70P
Year
2022
Category
Compactors
Subcategory
Single Drum Soil Compactors
Amplitude front, level I mm
1.79
Amplitude front, level I in
0.07 in
Axle load Front lb
8,488 lb
Axle load Front kg
3,850
Axle load Rear lb
5,647 lb
Axle load Rear kg
2,560
Centrifugal force front, level I kN
125
Centrifugal force front, level I lbf
28,100 lbf
Drum diameter in
53 in
Drum diameter mm
1,360
Drum type
Sheepsfoot
Drum width in
66.1 in
Drum width mm
1,680
Frequency front, level I Hz
30
Frequency front, level I Vpm
1,800 Vpm

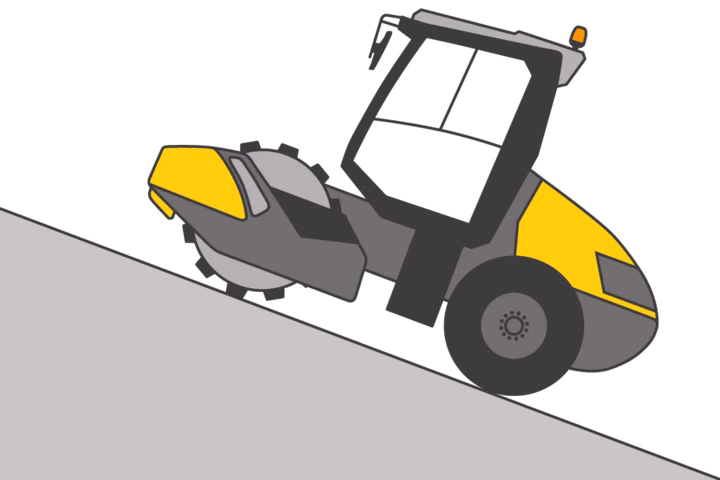

Gradeability with vibration %
55
Gradeability without vibration %
60
Tank capacity US gal
32 gal
Tank capacity l
123
Total linear load lb/in
130.8 lb per in
Total linear load N/mm
22.9
Traction drive
hydrostatic with wheel motors
Travel speed Operation, max. mph
3.7 mph
Travel speed Operation, max. km/h
6
Travel speed Transport gear, max. mph
7.8 mph
Travel speed Transport gear, max. km/h
12.5
Turning radius mm
3,310
Curb clearance left in
3.1
Curb clearance left mm
80
Curb clearance right in
2.7
Curb clearance right mm
70
Ground clearance Middle in
12.4
Ground clearance Middle mm
317
L x W x H in
173.6 x 72.6 x 115.2
L x W x H mm
4409 x 1844 x 2925
Operating weight max. kg
6,920
Operating weight max. lb
15,256
Operating weight with cabin kg
6,410
Operating weight with cabin lb
14,131
Operating weight with roll-over protective structure kg
6,190
Operating weight with roll-over protective structure lb
13,646
Operating width max. in
66.1
Operating width max. mm
1,680
Turning radius in
130.3
