Description

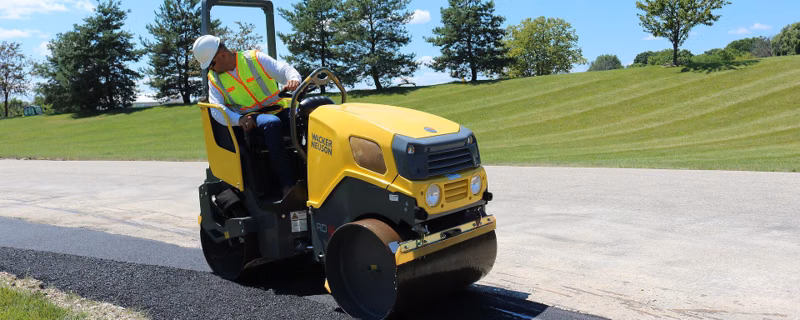

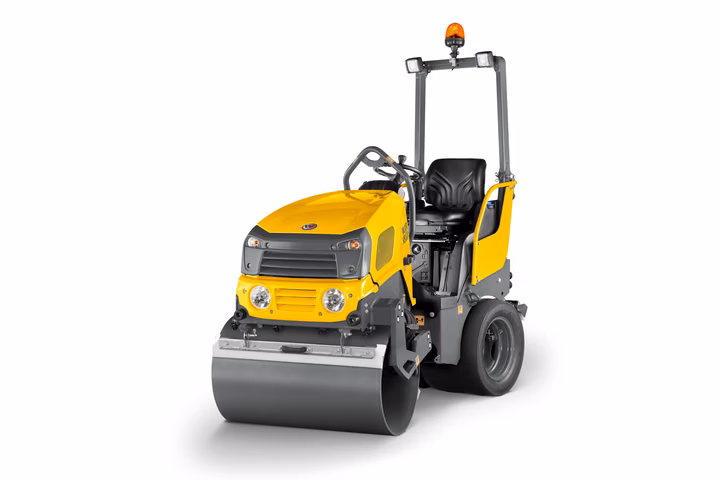

The RD18 articulated ride-on rollers offer a large drum diameter combined with the low machine center of gravity to ensure excellent compaction quality. The three-point articulated joint offers constant surface contact for better results, safety and a smoother ride. Unilateral drum support allows for up to the edge compaction on both sides.
Specifications
Manufacturer
Wacker Neuson
Model
RD18-100C
Year
2022
Category
Compactors
Subcategory
Tandem Rollers
Advance travel max ft/min
600.2 ft per min
Advance travel max m/min
183
Amplitude in
0.02 in
Amplitude mm
0.45
Axle load front kg
805
Axle load front lb
1,775
Axle load rear kg
825
Axle load rear lb
1,819
Centrifugal force front Level II kN
16
Centrifugal force front Level I kN
25
Centrifugal force front Level I lbf
5,620
Centrifugal force front Level II lbf
3,597
Drum diameter in
24.4 in
Drum diameter mm
620
Drum type front
smooth/undivided
Drum type rear
Tires
Drum width in
39.4 in
Drum width mm
1,000
Frequency Level I Hz
65
Frequency Level II Hz
52
Frequency Level I Vpm
3,900 Vpm
Frequency Level II Vpm
3,120 Vpm
Gradeability with vibration %
30
Gradeability without vibration %
40
Linear force - front / rear static lb/in
45.11 / 0
Linear force - front / rear static N/mm
7.9 / 0
Linear force static (front) lb/in
Front: 45.11 lb/in
Tank capacity water l
70
Turning radius inside mm
2,130
Tank capacity Water US gal
18.5 gal
Ground clearance middle in
9.5
Ground clearance middle mm
240
L x W x H in
89 x 40.9 x 87
L x W x H mm
2,260 x 1,040 x 2,210
Operating weight max. kg
1,830
Operating weight max. lb
4,035
Operating weight with roll-over protective structure kg
1,630
Operating weight with roll-over protective structure lb
3,594
Operating width in
39.4
Operating width mm
1,000
Turning radius inside in
83.9
