Description

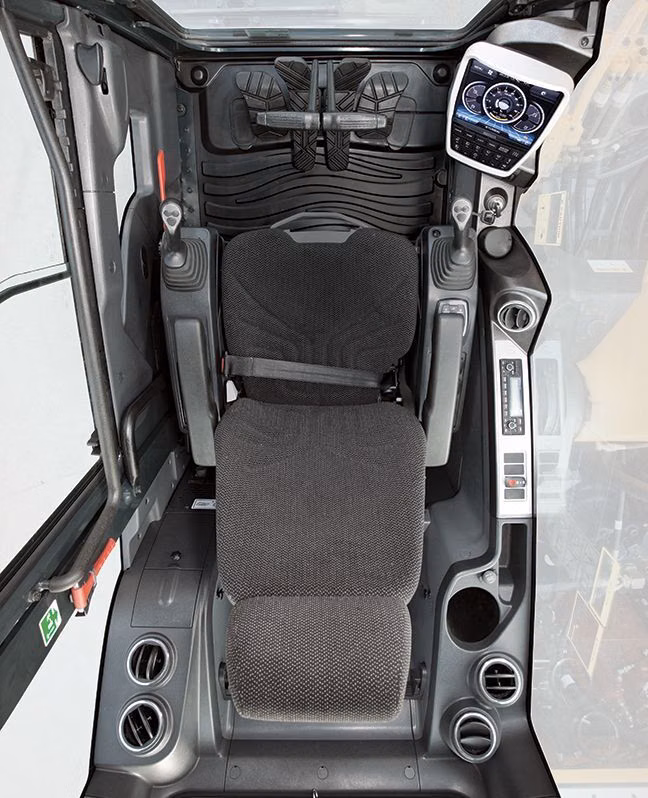

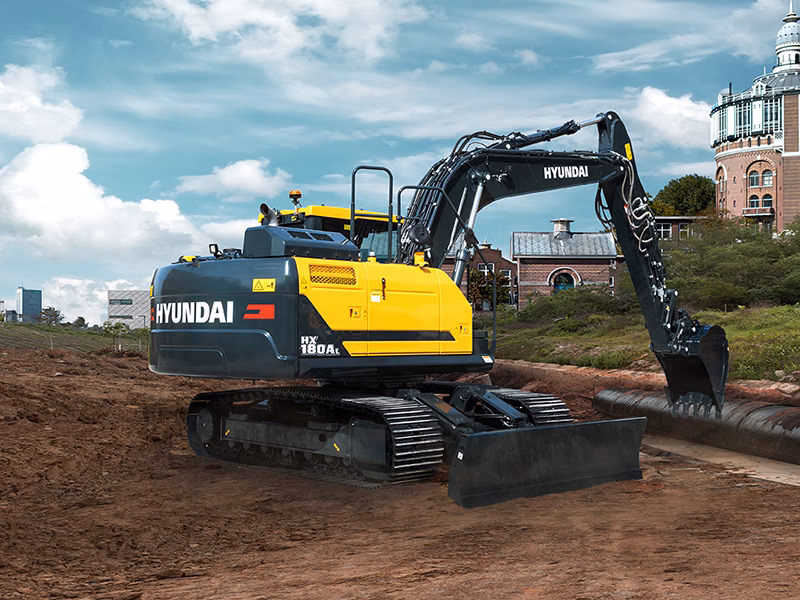

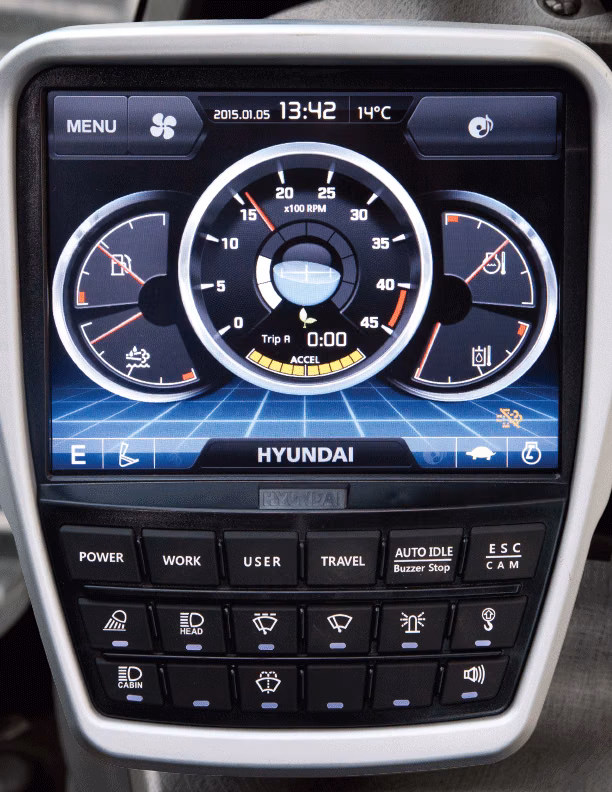

Powered by a Cummins B4.5 Stage 5ier 4 Final diesel engine, the HX180A L complies with the international Stage 5 emissions control standard. New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard-to-handle jobs. All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
Specifications
Manufacturer
Hyundai
Model
HX180A L
Year
2023
Category
Excavators
Subcategory
Crawler Excavators
Operating Weight
19,505 kg (43,000 lbs)
Bucket Range
.73 m3 / .95 yd3
Swing Speed
10.3 rpm
Travel Speed (Mph)
3.1 km / hr (1.9 mph) / 5.4 km / hr (3.4 mph)
Bucket Breakout Force
12,892 [14,000] kgf (28,421 [30,865] lbf) ISO
Arm Crowd Force
8,237 [8,940] kgf 18,158 [19,709] ISO
Max. Digging Depth (Ft/In)
6,030 mm (19 ft 9 in)
Max. Digging Reach
9,020 mm (29 ft 7 in)
Tail Swing Radius (Ft/In)
2,490 mm (8 ft 2 in)
Engine Model
Cummins B4.5
Net Power
152 hp (113 kW) at 2,200 rpm
