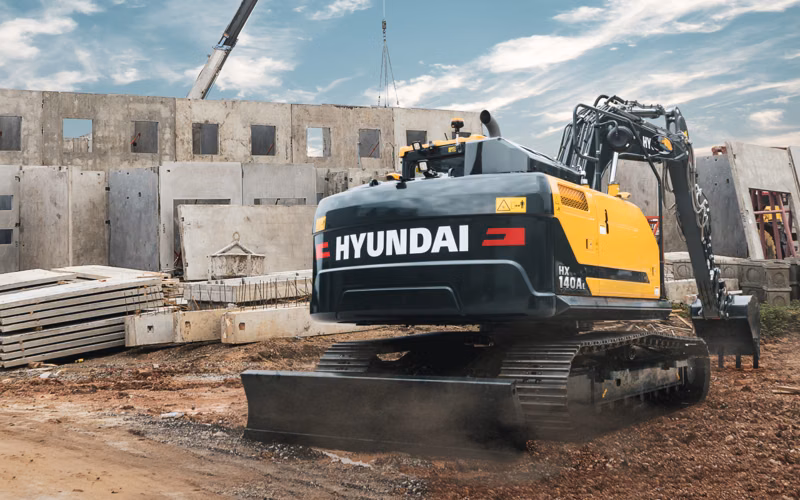

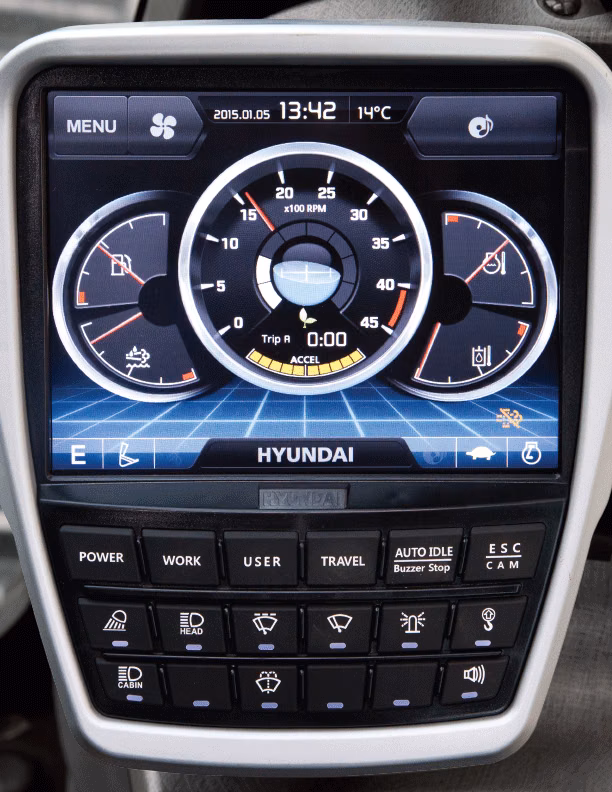

Powered by a Cummins B6.7 Stage 5ier 4 Final diesel engine, the HX140A L complies with the international Stage 5 emissions control standard. New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs. All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
Specifications
Manufacturer
Hyundai
Model
HX140A L
Year
2023
Category
Excavators
Subcategory
Crawler Excavators
Operating Weight
15, 230 kg (33,580 lb)
Bucket Range
0.61 m3 (.80 yd3 )
Swing Speed
11.4 rpm
Travel Speed (Mph)
3.2 km / hr (2 mph) / 5.5 km / hr (3.4 mph)
Bucket Breakout Force
10,492 [11,390] kgf (13,131 [25,111] lbf) ISO
Arm Crowd Force
5,924 [6,430] kgf (13,060 [14,176] lbf ) ISO
Max. Digging Depth (Ft/In)
6,015 mm (19 ft 9 in)
Max. Digging Reach
8,780 mm (28 ft 10 in)
Tail Swing Radius (Ft/In)
2,345 mm (7 ft 8 in)
Engine Model
Cummins F3.8
Net Power
131 hp (98 kW) at 2,200 rpm
