Description

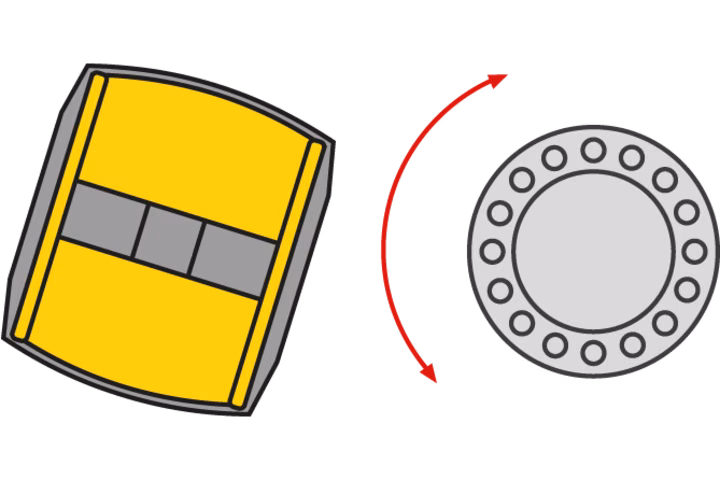

The DPU110r infrared remote controlled reversible vibratory plate offers maximum power, performance and ease of use. The innovative exciter control enables to the plate to be steered with pin-point accuracy with not loss of performance. The infrared control system maintains line-of-sight operation protecting the operator from vibration, emission and noise. Designed for the compaction of granular and mixed soils, the DPU110r offers over 24,000 pounds of centrifugal force to handle the toughest compaction jobs.
Specifications
Manufacturer
Wacker Neuson
Model
DPU110rLem970
Year
2023
Category
Compactors
Subcategory
Reversible Vibratory Plates
Centrifugal force
110 kN
Frequency
60 Hz
Advance travel max (dependent on soil and environmental influences)
28 m/min
Surface capacity max (dependent on soil and environmental influences)
1,630 m²/h
Transport height
1,000 mm
Transport length
1,515 mm
Transport width
1,050 mm
Base plate width
970 mm
Base plate length
1,183 mm
Base plate thickness
14 mm

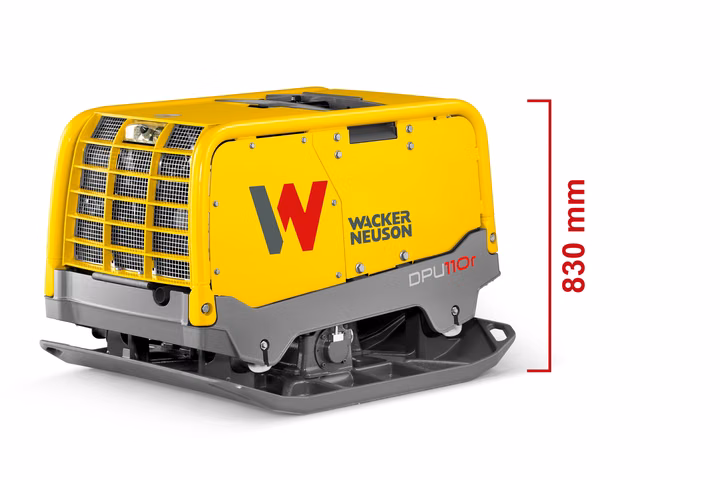

Height (ground clearance)
830 mm
Operating width
970 mm
