Description

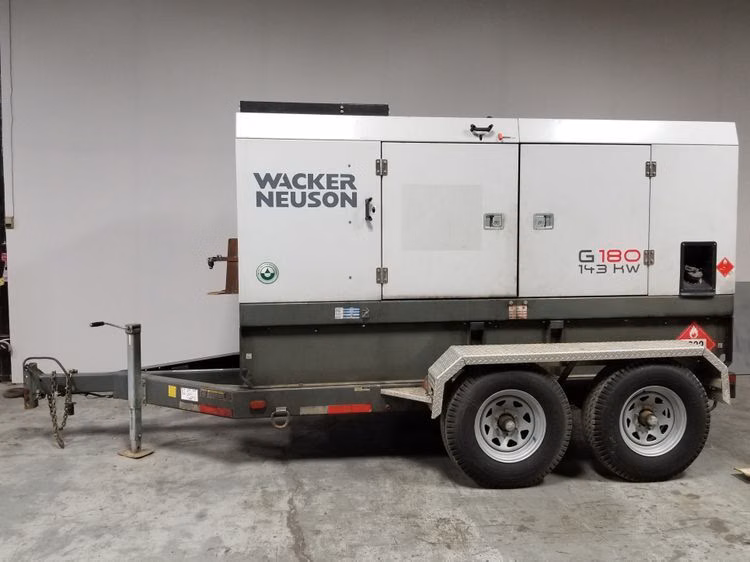

The G 180 mobile generator provides all the power needed for larger applications. The durable sound-attenuated generator is an excellent choice for larger applications where quiet mobile, prime power is needed. Used for construction, commercial, industrial, special event and emergency management applications. The T4i model is especially suited for areas requiring BAT (Best Available Technology) to meet the most stringent EPA, CARB air standards. A digital controller monitors and protects the generator and engine while providing continuous operating data on an easy to read LCD display. Large fuel tank provides convenient, long run times.
Specifications
Manufacturer
Wacker Neuson
Model
G180 (T4F)
Year
2023
Category
Generators
Subcategory
Mobile Generators
Battery V
12 V
Circuit breaker (Main) A
500
Coolant Capacity US qt
65.2 qt
Coolant Capacity l
61.7
Current 1 Phase (Prime) A
120/240
Current 3 Phase (Prime) A
430/215
DEF Consumption US gal/h
0.41 gal per h
DEF Tank Capacity US gal
37.4 gal
DEF Tank Capacity l
142
DEF Type
AUS 32
Emissions Certified
Tier 4F
Frequency (Generator Speed) Hz
60
Frequency Hz
60
Fuel consumption (Prime Load) l/h
39.3
Fuel type
#1/#2 ULSD
Generator insulation (class)
H
Generator model
Mecc Alte, Brushless w/AVR
Operating performance ISO 3046 kW
180
Power factor 1 Phase cos Phi 1~
1
Power factor 3 Phase cos Phi 3~
0.8
Power factor 1 Phase cos phase 1
1
Power factor 3 Phase cos phase 3
0.8
Prime output kW
143
Quantity (Battery)
2
Receptacles -20 Amp GFI Duplex
2
Receptacles -50 Amp Twist Lock
3
Runtime at 100% Prime Load h
27.3
Runtime at 25% Prime Load h
88.8
Runtime at 50% Prime Load h
50.7
Runtime at 75% Prime Load h
35.5
Runtime DEF 100% Prime Load h
86.6
Sound level (LwA) at Prime (23 ft / 7 m) dB(A)
70.5 LwA
Standby output kW
157
Trailer coupling Type
Pintel
Voltage 1 Phase V
120, 127, 139, 240, 254, 277
Voltage 3 Phase V
208, 220, 240, 416, 440, 480
Voltage control No Load to Full Load +/- %
1
Voltage control Steady State +/- %
0.2
