Description

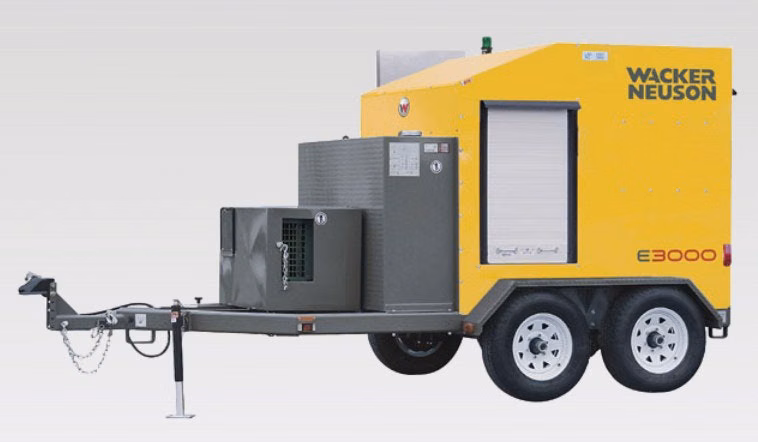

Engineered for reliable performance and trouble-free starts for up to 140 hours of run time, the E3000 will provide maximum flow and ensure consistent heat delivery for thawing and curing applications. The E3000 thaws or cures up to 6,000 sq. ft. With accessories this heater will cure up to 18,000 sq. ft. or provide 535,000 cu. ft. of dry heat at 83% efficiency, the highest in the industry.
Specifications
Manufacturer
Wacker Neuson
Model
E3000 W/ 5kW Gen
Year
2023
Category
Heaters
Subcategory
Hydronic Surface Heaters
Capacity Air Heat (w/acc) ft³
525,000 ft3
Capacity Cure (w/acc) ft²
18,000 ft2
Capacity Cure (std) ft²
6,000
Capacity Frost (w/acc) ft²
27,000 ft2
Capacity Frost (std) ft²
9,000
Capacity Thaw (w/acc) ft²
6,000 ft2
Capacity Thaw (std) ft²
3,000
Flow velocity per Circulation Loop US gal/h
265 gal per h
Generator model
Cummins Onan
Heat efficiency %
83
Heat transfer fluid Capacity US gal
115 gal
Heating power Gross Input BTU/h
385,000 BTU per h
Hose Lengths ft
3000 ft
Hose pressure Normal Operating psi
110 psi
Operating temperature ° F
180 F
Pump performance per pump US gal/h
265 gal per h
Quantity Circulation Loops
2
Quantity Hose Reels
2
Rated current A
20
Rated voltage V
115
Runtime @ 100% Burner Run Percentage h
81
Runtime @ 75% Burner Run Percentage h
108
Temperature monitor
Digital
Tank capacity Useable Fuel US gal
222 gal
L x W x H mm
4597 x 2311 x 2388
L x W x H in
181 x 91 x 94
Operating weight kg
3,525
Operating weight lb
7,771
Operating weight With Lift Bail kg
3,960
Operating weight With Lift Bail lb
8,730
Shipping weight kg
2,795
Shipping weight lb
6,161
Shipping weight With Lift Bail kg
3,230
Shipping weight With Lift Bail lb
7,120
