Description

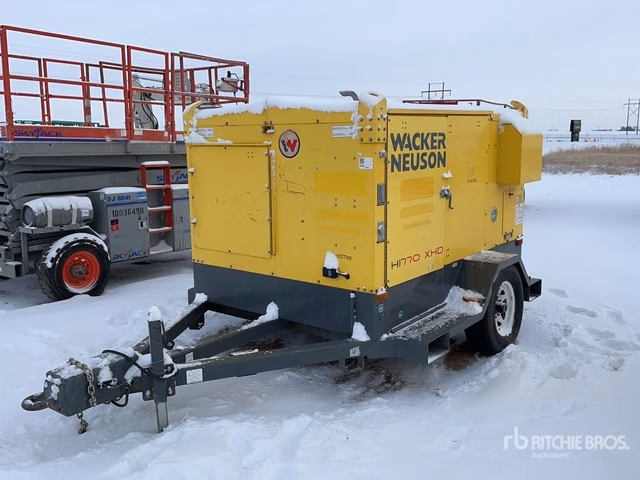

The HI 770XHD extra heavy duty indirect fired air heaters are designed to run 24/7 in extreme environments down to -60 degrees F. The environmentally friendly Triple Threat spill containment feature assures no diesel fuel, engine oil or coolant will contaminate the site and our optional gas detection system will safely shut down the heater in the presence of hydrocarbons. Machines are CSA certified.
Specifications
Manufacturer
Wacker Neuson
Model
HI 770XHD
Year
2023
Category
Heaters
Subcategory
Indirect Fired Air Heaters
Air flow m³/h
6,803
Air flow CFM
4,000
Capacity Drying Size ft³
342,527 ft3
Capacity Sizing Air Heat ft³
962,500
Current Max A
8.3 A
Current Service A
20
Diameter Air Inlet (qty 1) mm
508
Diameter Air Inlet (qty 1) in
20 in
Diameter Air Outlets (qty 2) in
12 in
Diameter Air Outlets (qty 1) in
16
Diameter Air Outlets (qty 1) mm
406
Diameter Flue in
9 in
Frequency Generator Hz
60
Heat efficiency %
75
Heating power Heat Input BTU/h
770,000 BTU per h
Length Max Duct - 1 x 20in Return ft
1 x 20in Return: 200 ft
Length Max Duct - 1 x 16in Supply m
45.7
Length Max Duct - 1 x 16in Supply ft
150
Length Max Duct - 1 x 20in Return m
61
Length Max Duct - 1 x 20in Supply m
61
Length Max Duct - 1 x 20in Supply ft
200
Length Max Duct - 2 x 12in Supply m
22.9
Length Max Duct - 2 x 12in Supply ft
75
Operating performance Burner hp
0.25
Operating temperature Air Temperature Rise ° F
240 F
Power Blower kW
2.2
Receptacles
N/A
Runtime Burner (75%) h
At 75%: 57 h
Runtime Burner (100%) h
43
Runtime w/ genset (100%) h
At 100%: 40 h
Static Pressure W.C. (inch)
4 in
Tank capacity Useable Fuel US gal
235.5 gal
Voltage Generator V
120
Ground clearance mm
330
Ground clearance in
13
L x W x H Overall mm
4750 x 2390 x 2240
L x W x H Overall in
187 x 94 x 88
L x W x H Shipping mm
4750 x 2390 x 2240
L x W x H Shipping in
187 x 94 x 88
Operating weight with Fuel kg
3,421
Operating weight with Fuel lb
7,543
Weight without Fuel kg
2,585
Weight without Fuel lb
5,700
