Description

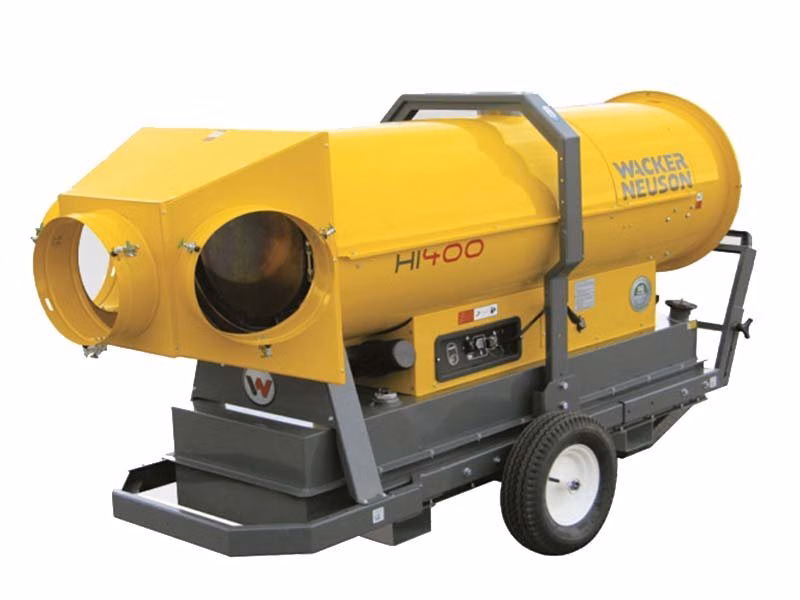

HI400HD portable indirect fired air heaters produce clean, dry, healthy heat offering an ideal environment for a variety of construction, residential and restoration applications without the use of an open flame, combustion carbons or water. Available in Diesel or Natural Gas/Propane, the HI400HD can handle various heating and drying applications at over 85% efficiency due to dedicated 2nd blower for combustion; one of the highest in the industry! Large pneumatic tires mean easy positioning on jobsites. The HI400HD is CSA approved.
Specifications
Manufacturer
Wacker Neuson
Model
HI400HD D
Year
2023
Category
Heaters
Subcategory
Indirect Fired Air Heaters
Air flow m³/h
6,394.6
Air flow CFM
3,760
Capacity Drying Size ft³
195,007 ft3
Capacity Sizing Air Heat ft³
583,538
Current A
15
Diameter Air Outlets (Qty 3) in
12 in
Diameter Air Outlets (Qty 1) in
20
Diameter Air Outlets (Qty 2) in
16
Diameter Air Outlets (Qty 2) mm
406.4
Diameter Air Outlets (Qty 3) mm
304.8
Diameter Flue in
6 in
Fuel consumption Diesel/LP US gal/h
2.96 gal per h
Frequency Hz
60
Heat efficiency %
84
Heating power Heat Input BTU/h
408,569.6 BTU per h
Length Max Duct 1 x 20in Return ft
1 x 20in Return: 25 ft
Length Max Duct 1 x 20in Return m
7.62
Length Max Duct 1 x 20in Supply m
30.48
Length Max Duct 1 x 20in Supply ft
100
Length Max Duct 2 x 16in Supply ft
50
Length Max Duct 2 x 16in Supply m
15.24
Length Max Duct 3 x 12in Supply m
7.62
Length Max Duct 3 x 12in Supply ft
25
Operating temperature Heat Rise ° F
126 F
Runtime h
19.2 h
Static Pressure W.C. (inch)
0.5 in
Voltage V
120
L x W x H Overall mm
2149 x 864 x 1354
L x W x H Overall in
84.6 x 34 x 53.3
L x W x H Shipping mm
2179 x 739 x 1316
L x W x H Shipping in
85.8 x 29.1 x 51.8
Operating weight with Fuel kg
390.1
Operating weight with Fuel lb
860
Weight Dry kg
206.8
Weight Dry lb
456
