Description

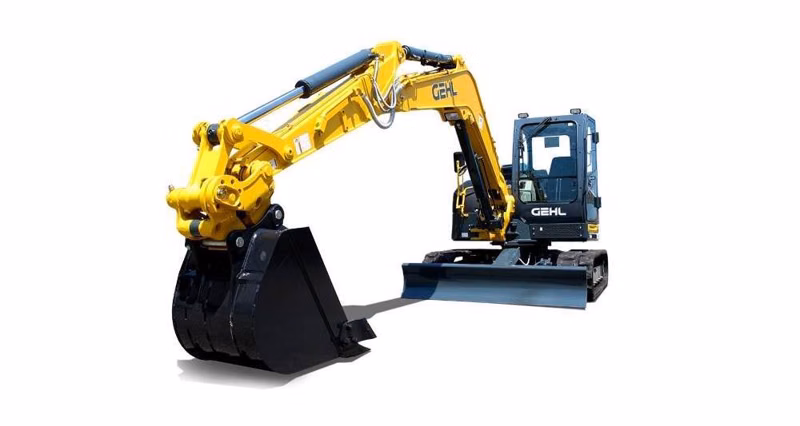

Gehl Z80 GEN:2 Compact Excavator
Specifications
Manufacturer
Gehl
Model
Z80 GEN:2 Compact Excavator
Year
2023
Category
Excavators
Subcategory
Compact Excavators
Displacement
202.5 cu.in or 3.32 L
Fuel Consumption
1.9 gal/hr or 7.2 L/hr
Fuel Tank
30.4 gal or 115 L
Gradability
20deg or 20deg
Ground Clearance
15.4" or 390 mm
Ground Pressure - Cab/Canopy
5.2 psi or 35.8 kPa/
Height
17.7" or 450 mm
Hydraulic Tank
15.9 gal or 60 L
Make
Yanmar or Yanmar
Maximum Arm Digging Force
8356 lbs or 3790 kg
Maximum Bucket Breakout
11,332 lbs or 5140 kg
Maximum Drawbar Pull
14,500 lbs or 6577 kg
Model
4TNV98C-WBV Tier IV or 4TNV98C-WBV Tier IV
Net Power @ rpm
55.7 hp @ 2000 or 42.4 kW @ 2000
Number of Rollers per Side (Track/Idle)
5/1 or 5/1
Oil Cooler
Standard or Standard
Operating Weight with Cab
18,136 lbs or 8225 mm
Pumps
2 variable, 2 gear or 2 variable, 2 gear
Slew Speed
9 rpm or 9 rpm
Swing System Pressure
3,481 psi or 240 bar
Total Flow Rate
56.7 gpm or 214.5 L/min
Track Length on Ground
8'2.4" or 2500 mm
Track Type/Width
Rubber/17.7" or Rubber/450 mm
Travel Speed - dual
1.6/2.8 mph or 2.5/4.5 km/hr
Type
Diesel or Diesel
Undercarriage Length
9'6" or 2890 mm
Width - extended/retracted
7'5" or 2260 mm
Working Pressure
3,699 psi or 255 bar
