Description

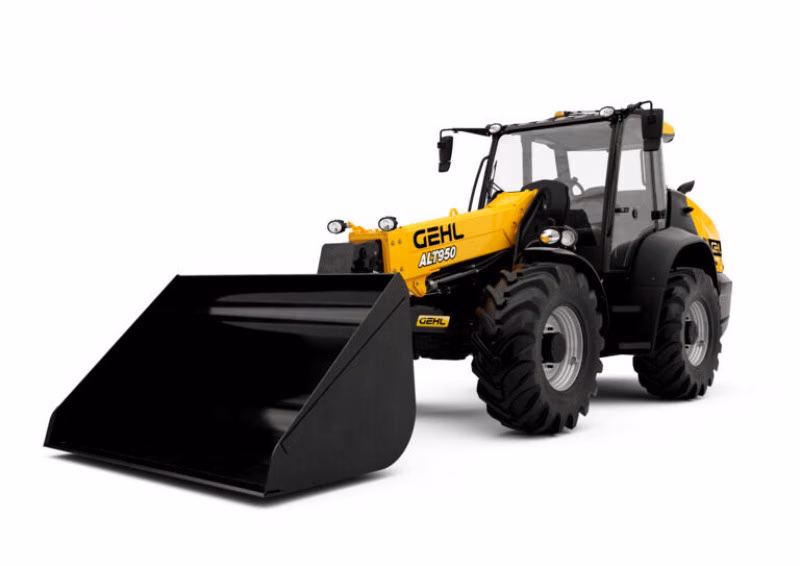

Gehl T950
Specifications
Manufacturer
Gehl
Model
T950
Year
2023
Category
Loaders
Subcategory
Telescopic Articulated Loader
Maximum Dump Angle at Full Height
44°
Articulation Angle from Center
44°
Static Tipping Load with Forks Straight (kg)
10,974 lbs (4978)
Static Tipping Load with Forks Full Turn (kg)
9,142 lbs (4147)
Bucket Breakout (daN)
15,129 lbf (6730)
Operating Weight with Bucket
18,717 lbs (8490)
Fuel Tank Capacity (L)
40 gal (150)
Maximum Travel Speed (kph)
25 mph (40)
Tire Size - Standard
460 / 70 R24 159A8 A580 - Alliance
Height to Top of Cab / ROPS (m)
8' 10" (2.7)
Width over Tires (m)
7' 6" (2.29)
Length to Carriage (m)
18' 9" (5.72)
Maximum Lifting Height - below forks (m)
17' 0" (5.2)
Outer Turning Radius (m)
13' 9" (4.2)
Work Hydraulic System Flow (L/min)
42 gpm (158)
Drive Hydraulic System Pressure (bar)
3,000 psi (270)
Drive Hydraulic Reservoir Capacity (L)
40 gal (150)
Make
Deutz
Model/Number of Cylinders
TD 4.1 L4 / 4
Power @ 2300 rpm (kW)
143 hp (105)
Displacement (cm3)
1607 in3 (4083)
