Description

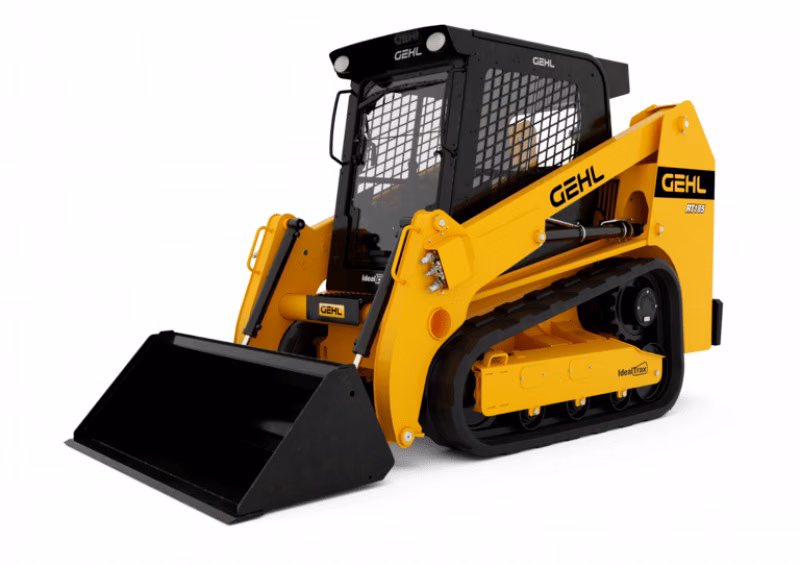

Gehl RT185
Specifications
Manufacturer
Gehl
Model
RT185
Year
2023
Category
Loaders
Subcategory
Track Loaders
Battery Volts
12V
Cold Cranking Amps at Temperature
850 CCA @ 0°F
Hand/Arm Vibration
≤ 2.73m/s²
Operator Ear
82.0 db
Sound Power
103.0 dB
Whole Body Vibration
≤ 0.98m/s²
Angle of Approach
90°
Angle of Departure with Standard Counterweight
30.4°
Bucket Width
65.9"
Carry Position
8.2"
Clearance Radius - Front With Bucket
91.4"
Clearance Radius - Rear with Standard Counterweight
65.6"
Crawler Base
54.8"
Digging Position + Above Ground/ - Below Ground
+0.9"
Dump Angle at Specified Height
66.8°
Dump Angle - Fully Raised
40.2°
Dump Height - Fully Raised
98"
Ground Clearance
12.5"
Grouser Height
1"
Height to Hinge Pin - Fully Raised
128"
Lift Height (mm)
128" (3251)
Maximum Rollback Angle at Carry Position
31.6°
Maximum Rollback Angle at Ground
30°
Maximum Rollback Angle - Fully Raised
102.5°
Maximum Rollback at Specified Height
66.8°
Operating Capacity at 35% Tipping Load
1,850 lbs
Operating Capacity at 50% Tipping Loadfifty
2,643 lbs
Operating Weight
9,160 lbs
Overall Height at ROPS
83"
Overall Length with Bucket - Standard Counterweight
148"
Overall Length without Bucket - Standard Counterweight
114.8"
Overall Operating Height - Fully Raised
168"
Overall Width - Less Bucket
64.4"
Reach at Specified Height
31.1"
Reach - Fully Raised
34.5"
Specified Height
67.5"
Tipping Load
5,286 lbs
Track Gauge
51.7"
Track Shoe Width
12.6"
Auxiliary Hydraulic Flow - Rated Speed @ rpm
18.5 gpm @ 2500
Hight-Flow Hydraulic Flow - Rated Speed
34 gpm
Motor Type
Axial Piston with Planetary Gear Box Reduction
Transmission Pump Type
Axial Piston
Alternator Voltage/Amperage
14V/100A
Bucket Breakout - Lift Cylinder
5,016 lbs
Bucket Breakout - Tilt Cylinder
5,354 lbs
Coolant Capacity
3.5 gal
Displacement/Cylinders
203 cu.in/4
Drawbar Pull/Tractive Effort
10,218 lbs
Fuel Tank
24 gal
Gross Power @ rpm
69.9 hp @ 2500
Ground Pressure
6.3 psi
Ground Speed - Single Speed
5.9 mph
Ground Speed - Two Speed
8.8 mph
Hydraulic Reservior Tank
11 gal
Make/Model
Yanmar/4TNV98C-NMSL
Net Power @ rpm
68.4 hp @ 2500
Oil Pump Capacity
11 qts.
Peak Torque @ rpm
178 ft-lbs @ 1625
Track Type/Track Rollers/Roller Type
Rubber/4/Steel
Track Width
12.6"
Type
4-Stroke Naturally Aspirated
