Description

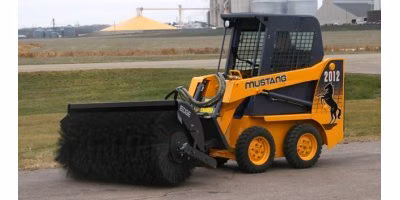

Mustang 2012
Specifications
Manufacturer
Mustang
Model
2012
Year
2023
Category
Skid Steers
Subcategory
Radial Skid Steer Loader
Clearance Circle - Front w/Bucket (mm)
58 in. (1473)
Clearance Circle - Front w/o Bucket (mm)
32.8 in. (833)
Clearance Circle - Rear (mm)
43.2 in. (1097)
Departure Angle
30°
Dump Angle
46°
Dump Height (mm)
72.3 in. (1836)
Dump Reach at Full Height (mm)
14.8 in. (376)
Ground Clearance to Chassis (mm)
5.9 in. (150)
Overall Operating Height - Fully Raised (mm)
124.7 in. (3167)
Rollback at Full Height
100°
Rollback at Ground Level
22°
Standard Tire Size
5.70 x 12
Starter (kW)
12-volt (1.7)
Travel Speed - Maximum (km/hr)
5.5 mph (8.9)
Auxiliary Hydraulics - Standard (L/min)
10.1 gpm (38.2)
Reservoir Capacity (L)
7.2 gal. (27.3)
Alternator
40-amp
Battery (CCA)
12-volt (950)
Displacement (L)
81 cu.in. (1.3)
Fuel Tank (L)
7.7 gal. (29)
Make
Yanmar
Maximum Torque (Nm) @ 1200 rpm
At 1,200 rpm: 68 ft.-lbs (86)
Model
3TNV82 Intermin Tier IV
Net Power (kW) @ 2400 rpm
At 2,400 rpm: 24 hp (17.9)
