Description

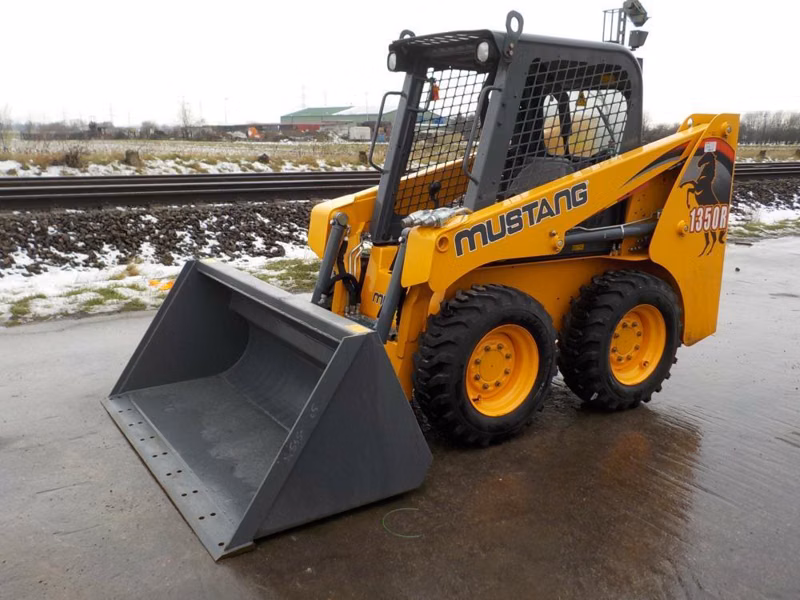

Mustang 1350R
Specifications
Manufacturer
Mustang
Model
1350R
Year
2023
Category
Skid Steers
Subcategory
Skid Steer Loader
Rated Operating Capacity (kg)
1350 lbs (612)
With optional counterweight (kg)
1500 lbs (680)
Fuel Tank (L)
16.5 gal. (62.5)
Travel Speed - Maximum (km/hr)
8.0 mph (12.9)
Operating Weight - Approximate (kg)
5078 lbs (2304)
Auxiliary Hydraulics - Standard (L/min)
17 gpm (64.4)
High-Flow Hydraulics - Optional (L/min)
N/A
Reservoir Capacity (L)
10 gal. (37.9)
Make
Yanmar
Model
4TNV88C-KMS Tier IV
Gross Power (kW) @ 2800 rpm
46.6 (34.7)
Net Power (kW) @ 2800 rpm
44.5 hp (33)
Maximum Torque (Nm) @ 1820 rpm
107.8 ft.-lbs (146)
Displacement (L)
133.6 cu.in. (2.19)
Overall Operating Height - Fully Raised (mm)
143.9 (3655)
Height to Hinge Pin - Fully Raised (mm)
109.6 (2784)
Overall Height to top of ROPS (mm)
75.1 (1908)
Ground Clearance to Chassis (mm)
7.9 (201)
Overall Length with 54 Bucket (mm)
120.3 (3056)
Overall Length without Bucket (mm)
92.2 (2342)
Wheelbase (mm)
37.6 (955)
Dump Reach at Full Height (mm)
22.7 (577)
Rollback at Ground Level
29deg
Dump Angle
40deg
Overall Width - Less Bucket (mm)
52.6 (1336)
Bucket Width (mm)
54 (1372)
Clearance Circle - Rear (mm)
54 (1372)
Clearance Circle - Front w/o Bucket (mm)
44.1 (1130)
Clearance Circle - Front w/Bucket (mm)
72.5 (1842)
Seat to Ground Height (mm)
33.3 (846)
Rollback at Full Height
82deg
Dump Height (mm)
82.6 (2098)
Departure Angle
25deg
Standard Tire Size
10.00 x 16.5 HD
Battery (CCA)
12-volt (950)
Starter (kW)
12-volt (3.0)
Alternator
100-amp
Quick Enquiry
Skid Steers Mustang Items for Sale Lowell,
Find this Mustang 1350R at Lowell, IN
