Description

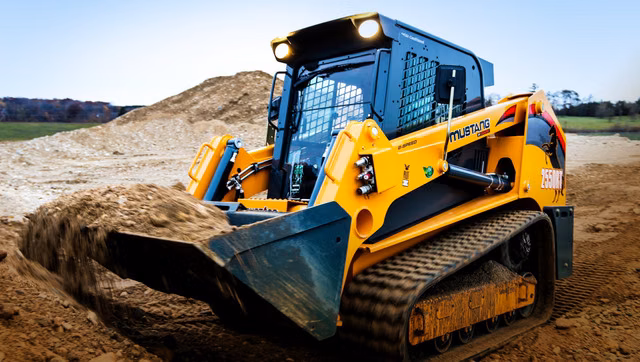

Mustang 2500RT NXT3
Specifications
Manufacturer
Mustang
Model
2500RT NXT3
Year
2023
Category
Skid Steers
Subcategory
Track Loader
Angle of Approach
90°
Angle of Departure with Standard Counterweight
25°
Bucket Breakout - Lift Cylinder (kg)
7,437 lbs (3373)
Bucket Breakout - Tilt Cylinder (kg)
8,384 lbs (3803)
Clearance Radius - Front with Bucket (mm)
98.4 in. (2499)
Clearance Radius - Rear with Standard Counterweight (mm)
70.7 in. (1796)
Crawler Base (mm)
61.5 in. (1562)
Digging Position - Below Ground (mm)
+0.5 in. (13)
Drawbar Pull / Tractive Effort (kN)
12,770 lbs (5792)
Dump Angle at Specified Height
75°
Dump Angle Fully Raised
41°
Dump Height - Fully Raised (mm)
98 in. (2489)
Ground Pressure (bar)
5.3 psi (0.37)
Ground Speed - Single Speed (km/hr)
5.8 mph (9.3)
Ground Speed - Two Speed (km/hr)
8.2 mph (13.2)
Grouser Height (mm)
1 in. (25)
Maximum Rollback Angle at Carry Position
31.6°
Maximum Rollback Angle at Ground
30°
Maximum Rollback Angle Fully Raised
102.5°
Maximum Rollback at Specified Height
66.8°
Overall Operating Height - Fully Raised (mm)
175.2 in. (4450)
Reach at Specified Height (mm)
31.3 in. (795)
Reach - Fully Raised (mm)
39.2 in. (996)
Tipping Load (kg)
7,143 lbs (3240)
Track Gauge (mm)
51.7 in. (1313)
Auxiliary Hydraulic Flow - Rated Speed (L/min)
24.9 gpm (94.3)
High-Flow Hydraulic Flow - Rated Speed (L/min)
37.4 gpm (141.6)
Hydraulic Reservoir Tank (L)
13.8 gal. (52.2)
Alternator Voltage Amperage
14V/95A
Cylinders
4
Displacement (L)
221 cu.in. (3.6)
Fuel Tank (L)
24 gal. (91)
Gross Horsepower (kW) @ 2300 rpm
At 2,300 rpm: 74.3 hp (55.4)
Make Model
Deutz/TD 3.6 Tier 4
Motor Type
Axial Piston with Planetary Reduction
Oil Pump Capacity (L)
9 qts. (8.5)
Peak Torque (Nm) @ 1500 rpm
At 1,500 rpm: 243 ft-lbs (330)
Roller Type
Steel
Track Rollers
5
Track Shoe Width (mm)
17.7 in. (450)
Track Type
Rubber
Track Width (mm)
17.7 in. (450)
Transmission Pump Type
Axial Piston
Type
4-Stroke Turbo
