Description

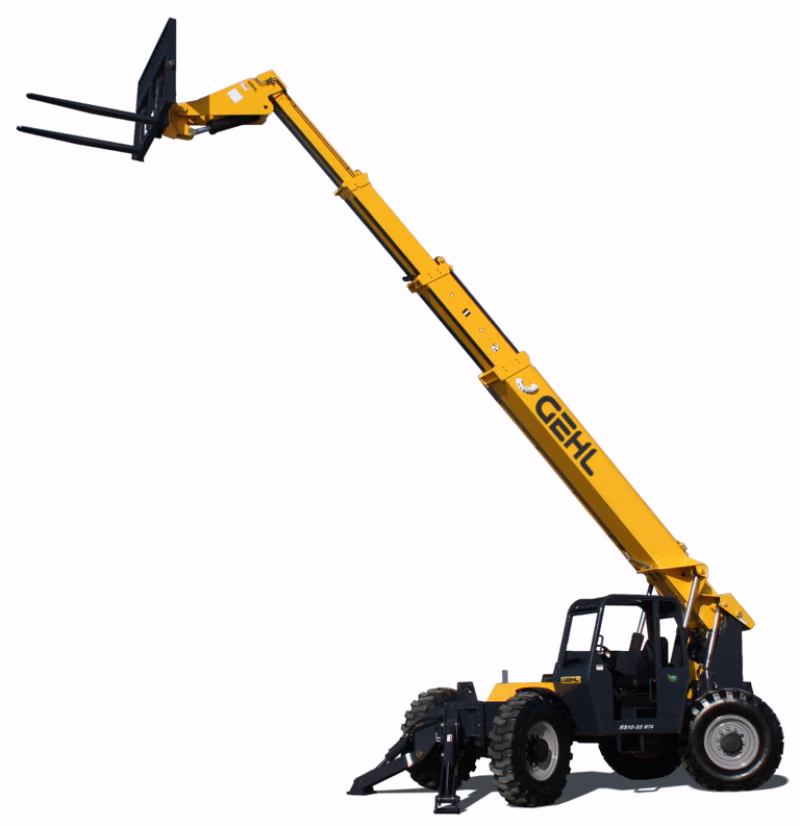

You'll be amazed at the power this 120hp machine brings to the jobsite. With 10,000lb lifting capacity and 55' reach, the RS10-55 GEN:4 will bring the force you need on the jobsite. This Telescopic Handler is just what you need for a job well done. Get in a machine you can trust, because GEHL Works Like You.
Specifications
Manufacturer
Gehl
Model
RS 10-55 M74
Year
2023
Category
Telehandlers
Subcategory
Construction Telehandlers
Length to face of forks
21 ft
Overall width
8 ft 3 in
Overall height
8 ft 6 in
Wheelbase
10 ft 4 in
Ground clearance
18 in
Overall cab width
33 in
Tilt-up angle
12 °
Tilt-down angle
112 °
External turning radius
13 ft 11 in
Unladen weight (with forks)
27800 lb
Overall weight
27800 lb
Standard tyres
14 x 24
Frame levelling longitudinal +/-
10 °
Frame levelling corrector
10 °
max capacity
10000 lb
max lifting height
55 ft 1 in
max outreach
41 ft 2 in
Engine brand
Deutz
Engine norm
Stage IV / Tier 4 Final
Engine model
TCD 3.6 L4
I.C. Engine power rating - Power (kW)
74 Hp / 55 kW
max torque / Engine rotation
288 ft/lbs @ 1300 rpm
Transmission type
Powershift
Number of gears (forward / reverse)
4/3
max travel speed
15 mi/h
Parking brake
SAHR
Service brake
Wet disc brakes
Axle Manufacturer
Dana
Hydraulic pump type
Gear pump
Hydraulic flow / Pressure
41 US gpm-3002 PSI
Engine oil
4 US gal
Hydraulic oil
45 US gal
Fuel tank
47 US gal
Steering wheels (front / rear)
2/2
Drive wheels (front / rear)
2/2
Safety cab homologation
ROPS/FOPS
Controls
Single joystick with FNR
