Description

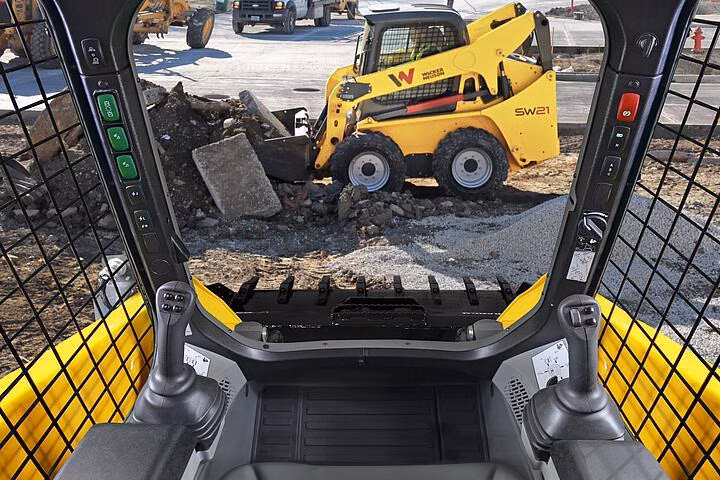

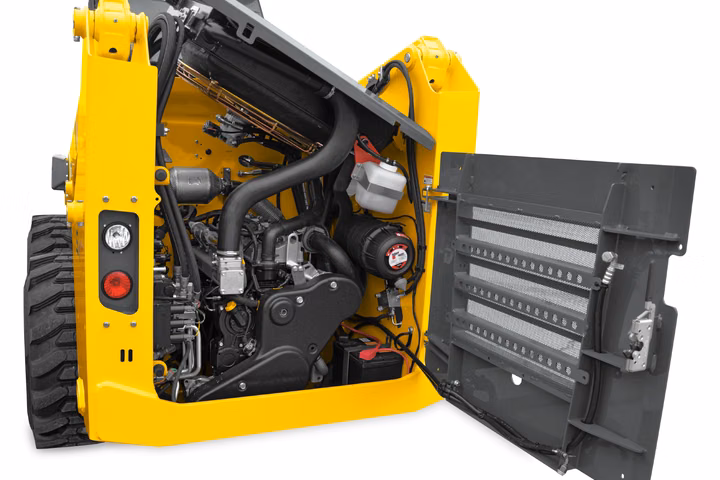

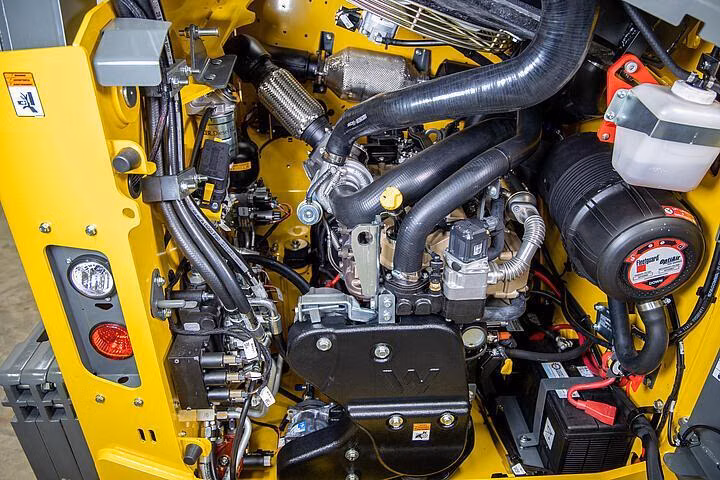

The ST45 vertical lift compact track loader delivers high operating capacity and extended lift height, making it ideal for digging and loading. The ST45 delivers 4,500 pounds of operating capacity at 50% and a lift height up to 134.8 inches. The machine is powered by a 74.3 hp turbo-charged Kohler Tier 4 Final engine. The ST45 is available with EH Hand-Foot, and Selectable EH (ISO and H-Pattern) controls. The ergonomically designed controls and pressurized cab provides comfort and visibility, reducing operator fatigue and increasing productivity.
Specifications
Manufacturer
Wacker Neuson
Model
ST45 Series II
Year
2023
Category
Skid Steers
Subcategory
Track Loaders
Travel speed low
10.3 km/h
Travel speed high
15.5 km/h
Rated Operating Capacity ROC 50%
2,041.2 kg
Rated Operating Capacity ROC 35%Onw
1,428.8 kg
Angle of departure
27 °
Tipping angle (bucket dump) w/ bucket at max height
44 °
Breakout force max - Bucket
31.1 kN
Breakout force max - Boom
36.7 kN
ROC
50% - 4500 lbs (2041 kg)

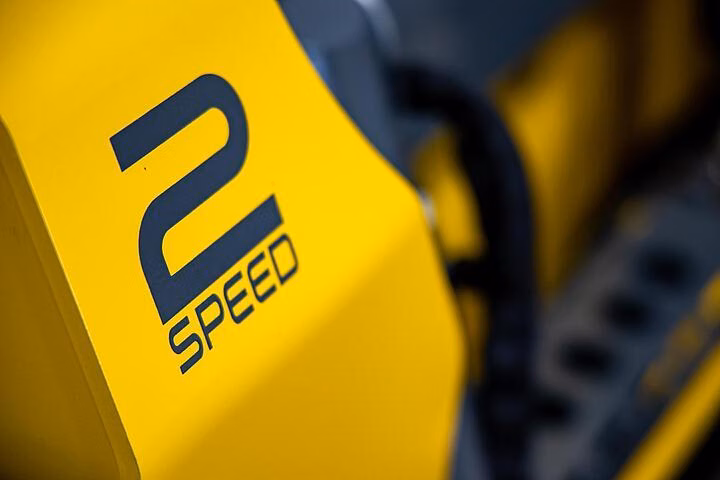

2-speed drive maximum speed
9.6 mph (15.4 kph)
Height top of ROPS
2,113 mm
Overall length w/ bucket
3,693.8 mm
Overall length w/o bucket
2,984.8 mm
Height Hinge Pin Max
3,425 mm
Length of track on ground
1,606 mm
Dump height max at max height
2,739 mm
Ground clearance
227.7 mm
Bucket width
1,982 mm
Width w/o bucket
1,930 mm
Width track
450 mm
Overall length with bucket
3,655 mm
Overall length without bucket
2,942 mm
Overall width with bucket
1,981 mm
Overall width without bucket
1,930 mm
Overall height
2,080 mm
Wheelbase
1,600 mm
Hinge pin height
3,438 mm
Dump height max
2,721 mm
Dump angle
38 °
Bucket rollback at max stroke height
45.5 °
Dump reach
872 mm
Bucket rollback at ground level
30.5 °
Ground clearance One
240 mm
Angle of departure
30 °
Length (w/ standard bucket) / width / height
145.%; (3693 mm) x 78"(1981 mm) x 83.2"(2113 mm)
Pin height
134.8"(3424 mm)
