Description

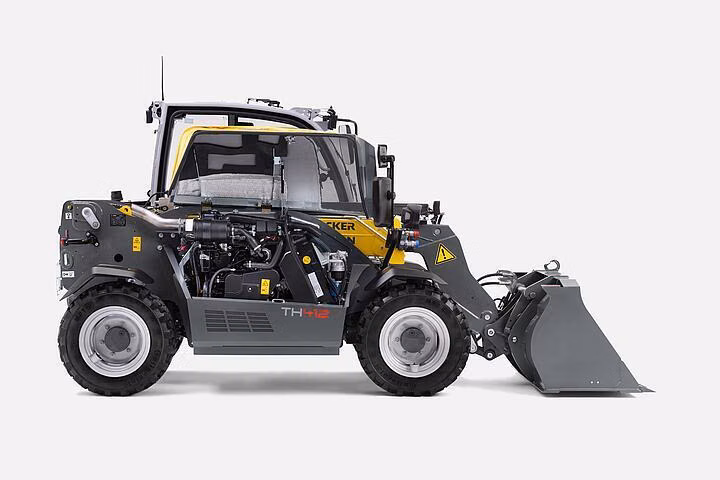

TH412 Telehandler: Compact and powerfulAll wheel steering, low centre of gravity and excellent stability distinguish the TH412 telehandler. The integrated driver assistance system VLS (Vertical Lift System) ensures safety, while also increases the operator comfort. The electronically regulated drive system with various operator modes enables an externally productive work operation with the machine. Thanks to its low operating weight and very compact dimensions, the TH412 can be transported on a car trailer without any problems. This makes its flexible for use in many different areas.
Specifications
Manufacturer
Wacker Neuson
Model
TH412
Year
2023
Category
Telehandlers
Subcategory
Telehandlers
Lift bucket swivel
178.6
Turning radius
106.1
Total length
155.3 in
Total length without bucket
117.8 in
Bucket pivot point (to center of axle)
17.7 in
Wheel base
75.7 in
Rear overhang
16.8 in
Height with cab
78.5 in
Seat height
38.5 in
Total working height
207.9 in
Bucket pivot point (max lift height)
178.6 in
Load-over height telescopic arm retracted
116.1 in
Load-over height telescopic arm extended
163.9 in
Dumping height telescopic arm retracted
95.1 in
Dumping height telescopic arm extended
142.9 in
Reach (at M)
21.9 in
Digging depth
3.8 in
Total width
61.6 in
Track width
48.6 in
Ground clearance
11.6 in
Maximum radius
138.0 in
Radius on the outer edge
106.1 in
Inner radius
37.4 in
Rollback angle at max lift height
52 °
Dumping angle
31 °
Rollback angle on ground
44 °
