Description

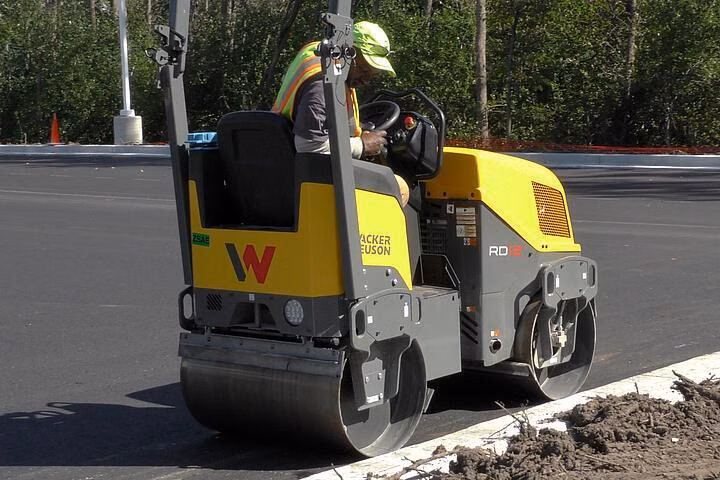

RD12 Tandem Roller: High performance for excellent compaction results. The RD12 tandem vibratory roller with a dual drum drive and articulated steering for excellent maneuverability. With a front vibrating drum and rear static drum it offers efficiency compaction results in a compact package. This machine is ideally suited for commercial and residential compaction of asphalt and granular subbase material. Primary applications include parking lots, driveways, secondary roads, repair work and nature trails. Additionally, the RD12 is utilized for turf rolling in the landscape and golf industry segments.
Specifications
Manufacturer
Wacker Neuson
Model
RD12L-90
Year
2024
Category
Compactors
Subcategory
Rollers
Centrifugal force
3,400 lbf
Area capacity
77,995.9 ft2/h
Gradeability max (without vibration)
30%
Linear force dynamic front
424.2 000014
Linear force dynamic rear
0 000014
Travel speed
0 - 5 m/H
Linear force static (front)
139.7 000014
Linear force static (rear)
175.3 000014
Oscillation Angle
12 °
Force/Drum (dynamic) front
3,372 lbf
Force/Drum (dynamic) rear
0 lbf
Travel speed (reverse)
0 - 5 m/H
Weight Drum (static) Front
1,108.9 lb
Weight Drum (static) Rear
1,399.9 lb
Cylinder
2,0
Water tank capacity
34.6 gal
HAV summation (average value)
4.9 ft/s2
Steering angle max
20.2 hp
Brake
Mech. parking brake
Steering
hydraulics
Shipping weight
2,288.4 lb
Length
74 "
Width
38.8 "
Height
90.6 "
Thickness Drum Sheet
0.4 "
Drum diameter
22 "
Side clearance left
1.7 "
Side clearance right
1.7 "
Curb clearance right
15.7 "
Curb clearance left
15.7 "
Turning radius inside
76.8 "
Drum width
35.4 "
Wheelbase
52 "
Length for shipping
79.8 "
Width for shipping
41.7 "
Height for shipping
69 "
