Description

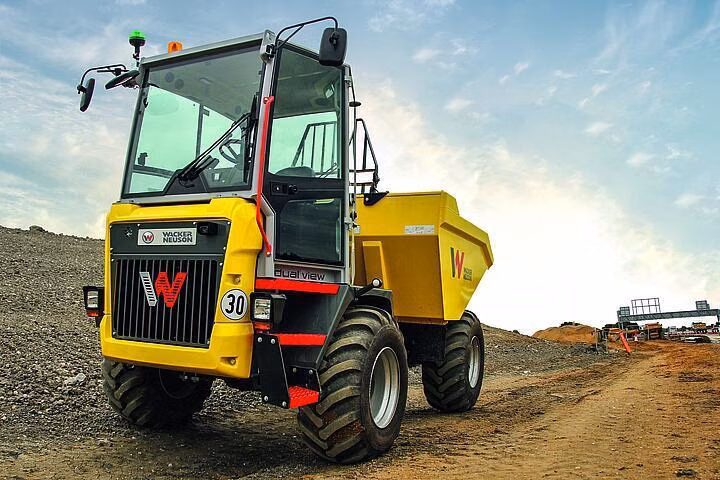

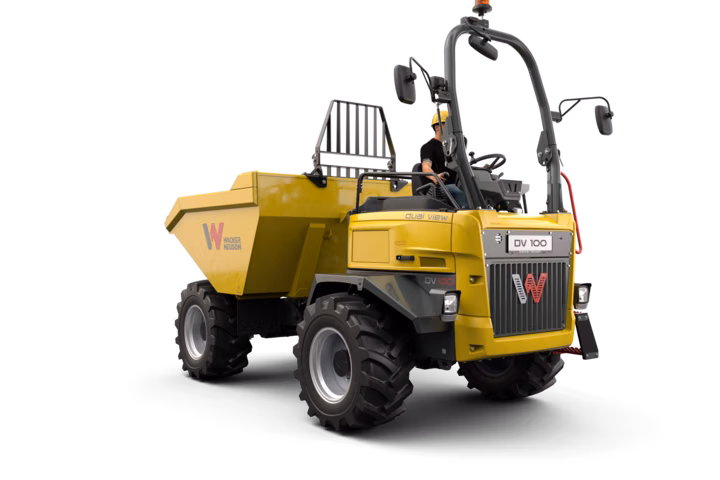

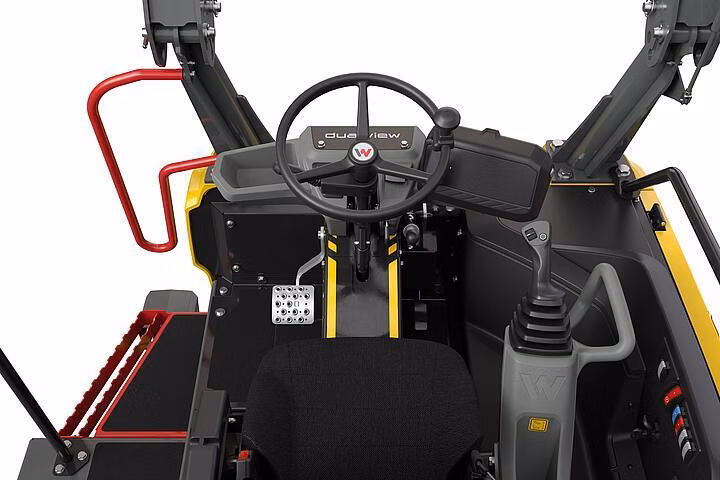

DV100 Dual View Dumper: Safer material transport in XXLWith the Dual View Dumper concept, safety has been redefined. The rotatable operator's seat is easy and efficient to use. With the 180° rotation, the operator maintains an excellent view of the skip with its content as well as the work area. Visibility is unmatched with the 360° view. In the main direction of travel, the operator has a perfect field of vision, similar to a truck, and with the hydrostatic drive system with automatic ECO mode, valuable time and money are saved on the construction site.
Specifications
Manufacturer
Wacker Neuson
Model
DV100
Year
2024
Category
Dumpers
Subcategory
Dual View Dumpers
Travel speed
18.6 m/H
Length
183.5
Operating weight (min-max)
10,397 - 11,232.6 lb
Width
98.6
Height
133.1
Payload
22,046.2 lb
Skip capacity levelled
1,096.3 gal
Skip capacity heaped
1,320.9 gal
Skip capacity waterlevel
673.7 gal
Cylinder capacity
178 Inch3
Effective power
74 hp
Nominal Engine speed
2,200 1/min
Engine type
Turbodieselengine air
Manufacturer
Deutz
Operating pressure
3,480 psi
Shipping weight
10,075.1 lb
Cylinder
4
Stroke
4.33
Bore
3.62
Engine designation
TD2.9 L4
Height ROPS
133.25 in
Height of ROPS tilted
94.8 in
Width of skip
98.7 in
Total length ROPS
183.6 in
Total length of cab
183.6 in
Wheel base
106.4 in
Dumping width
21.6 in
Dumping height max
12.8 in
Skip height
80.4 in
Skip height tilted
107.29 in
Ground clearance
14 in
Dumping angle
48 °
