Description

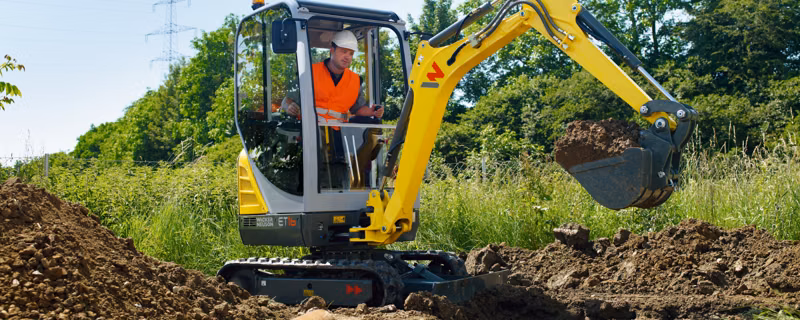

The ET16 offers the most powerful drive and largest cab in its class, plus offers flexibility when there is little space to operate. The swivel boom provides the ability to excavate near buildings and job site obstructions, while maintaining great visibility. The ability to move the machine with a small trailer from site to site makes it perfect for landscape projects. Fast transport speeds gets you from place to place on the job site to complete more tasks in less time.
Specifications
Manufacturer
Wacker Neuson
Model
ET16
Year
2024
Category
Excavators
Subcategory
Tracked Conventional Tail Excavators
Arm displacement max boom offset to centre of bucket left side
11.3 in/11.3 in
Arm displacement max boom offset to centre of bucket left side with
11.3 in
Arm displacement max boom offset to centre of bucket right side
17 in/17 in
Arm displacement max boom offset to centre of bucket right side with
17 in
Biting force max
1,776 lbf
Boom slewing radius
47 in/47.1 in
Boom slewing radius with
47.1 in
Breakout force max
3,439.6 lbf
Cabin - specified sound pressure level LpA
79 dB(A)
Chain width
9.1 in
Chain width with
9.1 in
Digging depth max
95 in
Digging depth max (bucket arm long)
95 in/93.5 in
Digging depth max (bucket arm long) with
93.5 in
Digging depth max (bucket arm short)
88.3 in/86.8 in
Digging depth max (bucket arm short) with
86.8 in
Digging radius max
152.01 in
Digging radius max (bucket arm long)
152 in/152.1 in
Digging radius max (bucket arm long) with
152.1 in
Digging radius max (bucket arm short)
145.7 in/145.8 in
Digging radius max (bucket arm short) with
145.8 in
Dozer blade height
215 mm
Dozer blade stroke max, above ground
235 mm
Dozer blade stroke max, below ground
270 mm
Dozer blade width (folded in)
990 mm
Dump height max (bucket arm long)
98.2 in/99.2 in
Dump height max (bucket arm long) with
99.2 in
Dump height max (bucket arm short)
93.4 in/94.4 in
Dump height max (bucket arm short) with
94.4 in
Dumping height
93.3 - 99.1 in
Duty pump
Gear pump
Insertion depth vertical (bucket arm long)
70.9 in/69.5 in
Insertion depth vertical (bucket arm long) with
69.5 in
Insertion depth vertical (bucket arm short)
64.7 in/63.2 in
Insertion depth vertical (bucket arm short) with
63.2 in
Insertion height (bucket arm long)
138.1 in/139 in
Insertion height (bucket arm long) with
139 in
Insertion height (bucket arm short)
133.4 in/134.3 in
Insertion height (bucket arm short) with
134.3 in
Length total crawler length
1,462 mm
Lift height max, of dozer blade above ground
8.3 in/9.3 in
Lift height max, of dozer blade above ground with
9.3 in
Operating pressure Slewing gear
1,885.5 psi
Range (bucket arm long)
150 in/150 in
Range (bucket arm long) with
150 in
Range (bucket arm short)
143.6 in/143.5 in
Range (bucket arm short) with
143.5 in
Rear swivel radius
42.3 in/42.4 in
Rear swivel radius with
42.4 in
Scraping depth max, of dozer blade below ground
10.3 in/10.6 in
Scraping depth max, of dozer blade below ground with
10.6 in
Sound level (LwA) acc. to 2000/14/EC
93 dB(A)
Stroke max, above ground
9.3 in
Stroke max, below ground
10.6 in
Superstructure slewing speed
9.8 rev/min
Transport length (bucket arm long)
142 in/142.1 in
Transport length (bucket arm short)
143.5 in/143.7 in
Travel speed
2.54 mph
Turning angle max, of boom system to the left
73 degrees/73 degrees
Turning angle max, of boom system to the left with
73 °
Turning angle max, of boom system to the right
49 degrees/49 degrees
Turning angle max, of boom system to the right with
49 °
Width telescopic undercarriage extended
/51.2 in
Width undercarriage
39 in/39 in
Ground clearance
7.1 in
Height
8.5 in
Height with
91.2 in
L x W x H
143 x 39 x 90 in
Length total crawler length with
57.6 in
Operating weight
3,370.83 - 3,791.91 lb
Shipping weight min
1,402 kg
Transport length (bucket arm long)
3,607 mm
Transport length (bucket arm long) with
142.1 in
Transport length (bucket arm short)
3,644 mm
Transport length (bucket arm short) with
143.7 in
Width (folded in)
39 in
Width telescopic undercarriage extended with
51.2 in
Width undercarriage
990 mm
Width undercarriage with
39 in
