Description

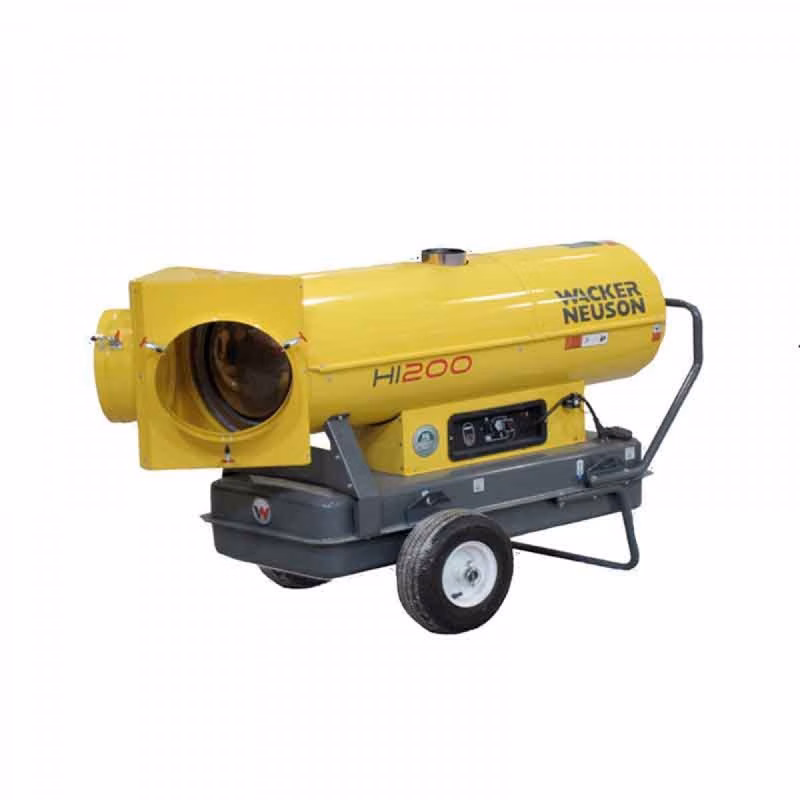

Efficient, versatile and reliable, the HI 200 portable indirect fired air heaters produce clean, dry, healthy heat offering an ideal environment for a variety of construction, residential and restoration applications without the use of an open flame, combustion carbons or water. The HI 200 can handle various heating and drying applications with 205,000 BUT's/hr and over 84% efficiency. Large pneumatic tires and extended run time fuel tanks make these portable air heaters ideal for any jobsite and are CSA approved
Specifications
Manufacturer
Wacker Neuson
Model
HI 200HD D
Year
2024
Category
Heaters
Subcategory
Indirect Fired Air Heaters
Air flow m³/h
2,599.5
Air flow CFM
1,530
Capacity Drying Size ft³
2,054 ft3
Capacity Sizing Air Heat ft³
6,490
Current A
15
Diameter Air Outlets (Qty 2) in
12 in
Diameter Air Outlets (Qty 2) mm
304.8
Diameter Flue in
6 in
Frequency Hz
60 Hz
Heat efficiency HHV %
84.5
Heating power Gross Heat Input BTU/h
204,873 BTU per h
Heating power Net Heat Output BTU/h
173,117 BTU per h
Length Max Duct 2 x 12 Supply Adapter ft
2 x 12in Supply Adapter: 25 ft
Length Max Duct 1 x 14 Supply Adapter m
15.24
Length Max Duct 1 x 14 Supply Adapter ft
50
Length Max Duct 2 x 12 Supply Adapter m
7.62
Operating temperature Heat Rise (at 68° F) ° F
At 68 degrees F: 136 F
Runtime 100% Burner run percentage h
18.7
Static Pressure W.C. (inch)
0.5 in
Voltage V
120
L x W x H Overall mm
1661 x 762 x 983
L x W x H Overall in
65.4 x 30.0 x 38.6
L x W x H Shipping mm
1631 x 655 x 963
L x W x H Shipping in
64.2 x 25.8 x 37.9
Operating weight with Fuel kg
198
Operating weight with Fuel lb
437
Weight Dry kg
109
Weight Dry lb
240
