Description

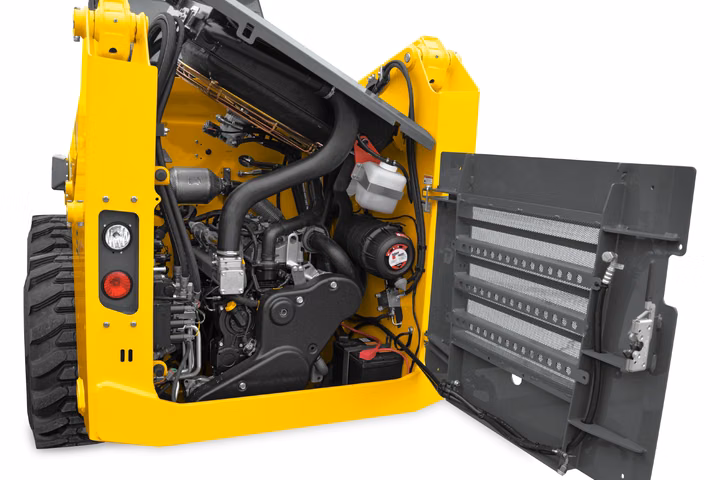

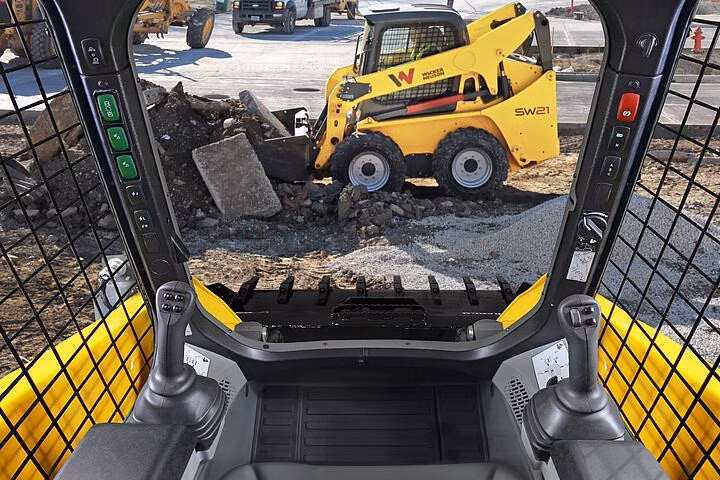

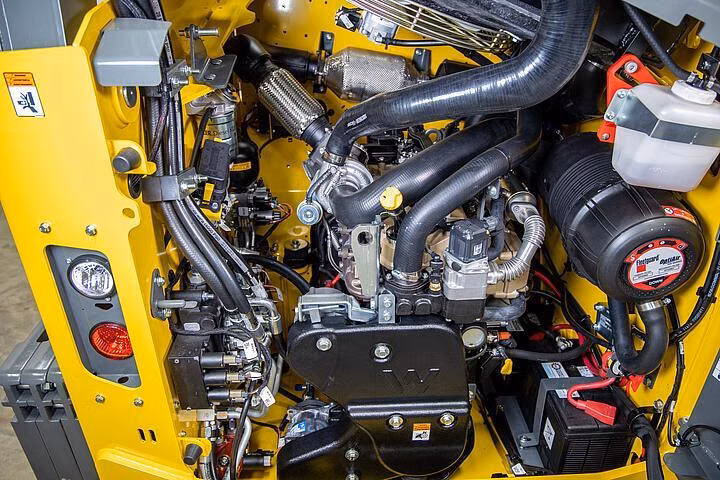

The SW 28 brings maximum reach making it ideal for loading and unloading. The SW 28 delivers 2,800 pounds of rated operating capacity at 50% and a lift height up to 134 inches. The machine is equipped with a 74.3 hp turbo-charged Perkins Tier IV Final engine. Available in both H-pattern and ISO joystick pilot controls, the machines can fit the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue, increasing productivity.
Specifications
Manufacturer
Wacker Neuson
Model
SW28
Year
2024
Category
Skid Steers
Subcategory
Skid Steer Loaders
Angle of departure
25 °
Breakout force max - Boom
5,705 lbf
Breakout force max - Bucket
6,717 lbf
Bucket rollback at ground level
30.5 °
Bucket rollback at max stroke height
45.5 °
Bucket width
72 in
Dump angle
38 °
Dump height max
107.1 in
Dump height max at max height
107.1 in
Dump reach
352 in
Height Hinge Pin Max
134.6 in
Hinge pin height
134.6 in
Pressure aux. relief
3,338 psi
Rated Operating Capacity 50%
2,800 lb
Tank capacity
24.3 US gal
Tipping angle (bucket dump) w/bucket pin @ 124 in
45.5 °
Tipping angle (bucket dump) w/bucket at max height
38 °
Travel speed (high)
11.2 mph
Travel speed (low)
6.8 mph
Ground clearance
9.4 in
Height top of ROPS
81.9 in
Operating weight
8,253 lb
Overall height
81.9 in
Overall length with bucket
143.9 in
Overall length without bucket
115.8 in
Overall width with bucket
72 in
Overall width without bucket
70 in
Wheelbase
1,164 mm
Width w/o bucket
70 in
