Description

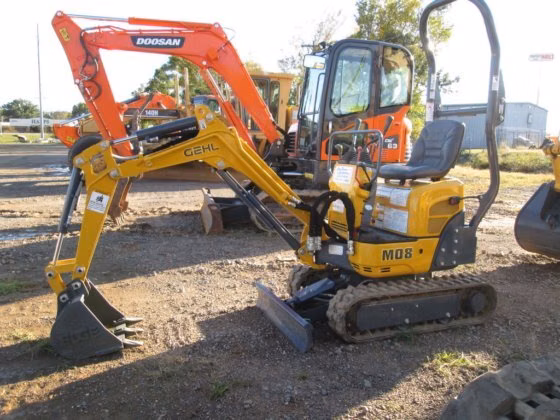

Gehl M08 Excavator
Specifications
Manufacturer
Gehl
Model
M08 Excavator
Year
2024
Category
Excavators
Subcategory
Compact Excavators
Displacement
30.9 cu in or 0.507 L
Fuel Consumption
0.28 gal/hr or 1.1 L/hr
Fuel Tank
2.6 gal or 9.7 L
Gradability
20deg or 20deg
Ground Clearance
5.1" or 130 mm
Ground Pressure - Cab/Canopy
/4.2 psi or 28.8 kPa
Height
7.1" or 180 mm
Hydraulic Tank
1.5 gal or 5.7 L
Make
Yanmar or Yanmar
Maximum Arm Digging Force w/out quick coupler
1,390 lbs or 631 kg
Maximum Bucket Breakout w/out quick coupler
2,360 lbs or 1071 kg
Maximum Drawbar Pull
1,550 lbs or 703 kg
Model
2TE67L-BV4 or 2RE67L-BV4
Net Power @ rpm
10.0 hp @ 2400 or 7.68 kW @ 2400
Number of Rollers per Side (Track/Idle)
2/1 or 2/1
Oil Cooler
Standard or Standard
Operating Weight with Canopy
2,348 lbs or 1065 kg
Pumps
2 gear or 2 gear
Slew Speed
8.4 rpm or 8.4 rpm
Swing System Pressure
1,001 psi or 69 bar
Total Flow Rate
5.2 gpm or 19.6 L/min
Track Length on Ground
3' 3.6" or 1006 mm
Track Type/Width
Rubber/7.1" or Rubber/180 mm
Travel Speed - dual
1.1 mph or 1.8 km/hr
Type
Diesel or Diesel
Undercarriage Length
5'1" or 1525 mm
Width - extended/retracted
2' 3" / 2' 9" or 680/840 mm
Working Pressure
2,625 psi or 181 bar
