Description

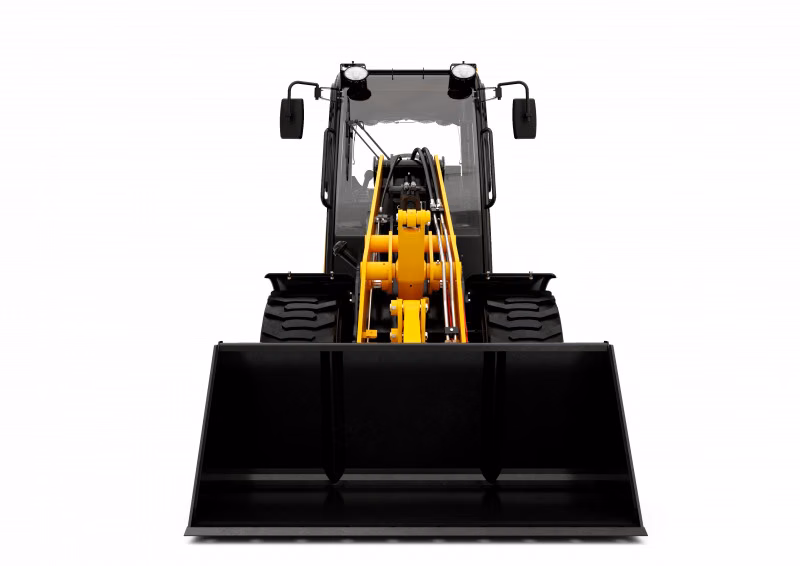

Pound-for-pound packed with power, the AL550 and its Z-kinematic loader arm features unmatched break-out forces to take on the toughest challenges. Small yet powerful, this machine's responsive hand throttle and 2-speed hydrostatic transmission get you to the task at hand with speeds up to 18 MPH, and its front and rear differential locks ensure you have traction exactly when and where you need it. In other words, this machine is like you—ready to get the job done.
Specifications
Manufacturer
Gehl
Model
AL550
Year
2024
Category
Loaders
Subcategory
Articulated Loader
Static tipping load with bucket (straight)
4828 lb
Static tipping load with bucket (full turn)
3732 lb
Static tipping load with forks (straight)
3411 lb
Static tipping load with forks (full turn)
2654 lb
max height of bucket pivot point
10 ft 4 in
Reach at max height
1 ft 5 in
Breakout force with bucket
4329.46 daN
Static tipping load with bucket - Straight with cab
4828 lb
Static tipping load with bucket - Full turn with cab
3732 lb
Static tipping load with pallet forks - Straight with cab
3411 lb
Crowd
2.52 s
Dump
1.85 s
Engine brand
Deutz
Engine model
TD 2.2 L3
Number of cylinders / Capacity of cylinders
3 - 21 in³
I.C. Engine power rating / Power (kW)
60 Hp / 45 kW
max torque / Engine rotation
148 ft/lbs / 2400 rpm
Engine cooling system
2 water radiators + hydraulic oil
Transmission type
Hydrostatic
Number of gears (forward / reverse)
2/2
max travel speed (may vary according to applicable regulations)
18 mi/h
Differential lock
Front and rear locking of the machine
Parking brake
Manual
Hydraulic pump type
Gear pump
Hydraulic flow - Pressure
15 US gpm / 3046 PSI
Drive hydraulic system pressure
6092 PSI
Hydraulic oil
12 US gal
Fuel tank
22 US gal
Safety cab homologation
Cabin ROPS - FOPS Level 1
Unladen weight (with forks) with 4-post canopy
7470 lb
Overall length to carriage (with hitch)
13 ft 9 in
Wheelbase
5 ft 9 in
Overall width of 4 posts canopy
4 ft
Overall cab width
4 ft
Overall height with 4 posts canopy
7 ft 7 in
Overall height with cab
7 ft 7 in
Tilt-up angle
39.90 °
Tilt-down angle
44.70 °
External turning radius (over tyres)
10 ft 6 in
Articulation angle
45 °
Overall width less bucket
4 ft 10 in
Ground clearance
10 in
