Description

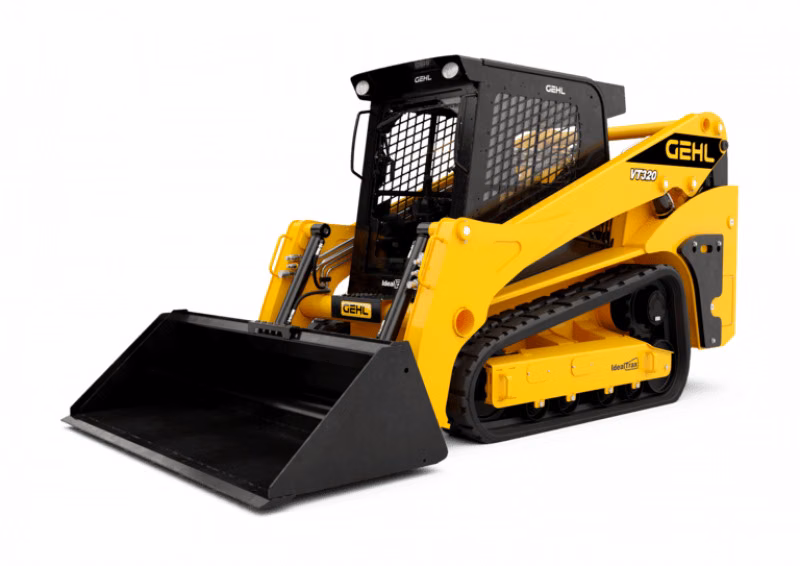

If your job requires a unit at the top of the food chain, look no further than the VT320. This vertical lift track loader is the largest in our offering and is willing to compete with any other unit in the trenches, where it matters. A 85 kW engine and 1,452 kg of rated operating capacity gives this unit the tractive effort and muscle needed to break out of piles. The VT320 is the bite, not the bark.
Specifications
Manufacturer
Gehl
Model
VT320
Year
2022
Category
Loaders
Subcategory
Track Loaders
Electronic System Battery Volts
12V
Electronic System Cold Cranking Amps at Temperature
950 CCA @ 0°F
Forces Bucket Breakout - Lift Cylinder
7,491 lbs
Forces Bucket Breakout - Tilt Cylinder
9,901 lbs
Forces Ground Speed - Single Speed
5.3 mph
Forces Ground Speed - Two Speed
7.8 mph
Ground Pressure
5.3 psi
Track Drives Drawbar Pull/Tractive Effort
12,770 lbs
Track Type/Track Rollers/Roller Type
Rubber/5/Steel
Track Width
17.7"
Volume Coolant Capacity
5.1 gal
Volume Fuel Tank
32.5 gal
Volume Hydraulic Reservior Tank
9.9 gal
Angle of Approach
90°
Angle of Departure with Standard Counterweight
24°
Bucket Width
83.9"
Capacity Operating Capacity at 35% Tipping Load
3,200 lbs
Capacity Operating Weight
11,610 lbs
Carry Position
7.8"
Clearance Radius - Front With Bucket
96.1"
Clearance Radius - Rear with Standard Counterweight
73.6"
Crawler Base
61.8"
Digging Position - Below Ground
+0.74"
Displacement/Cylinders
221 cu in/4
Dump Angle at Specified Height
67.6°
Dump Angle - Fully Raised
41°
Dump Height - Fully Raised
99.6"
Gross Power @ rpm
114 hp @ 2300
Ground Clearance
12.2"
Grouser Height
1"
Height to Hinge Pin - Fully Raised
130.0"
Lift Height (mm)
130" (3302)
Maximum Rollback Angle at Carry Position
31°
Maximum Rollback Angle at Ground
31°
Maximum Rollback Angle - Fully Raised
90°
Maximum Rollback at Specified Height
64.5°
Net Power @ rpm
108 hp @ 2300
Overall Height at ROPS
83.1"
Overall Length with Bucket - Standard Counterweight
159.8"
Overall Length without Bucket - Standard Counterweight
127.7"
Overall Operating Height - Fully Raised
169"
Overall Width - Less Bucket
69.5"
Peak Torque @ rpm
339 ft-lbs @ 1600
Reach at Specified Height
29.6"
Reach - Fully Raised
40.4"
Specified Height
76.3"
Track Gauge
51.7"
Track Shoe Width
17.7"
Auxiliary Hydraulic Flow - Rated Speed
27 gpm
High-Flow Hydraulic Flow - Rated Speed
37.4 gpm
Motor Type
Radial Piston w/ Planetary Gear
Transmission Pump Type
Axial Piston
Alternator Voltage/Amperage
14V/95A
Capacity Operating Capacity at 50% Tipping Load
4,571 lbs
Capacity Tipping Load
9,143 lbs
Make/Model
Deutz/TD 3.6 EPA Final Tier 4
Oil Pump Capacity
9 qts
Type
4-Stroke Turbo
