Description

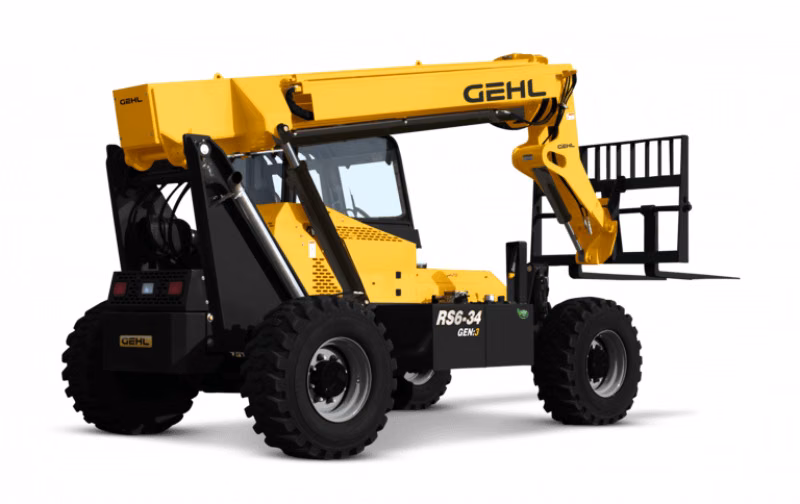

Gehl RS6-34 GEN:3 Telescopic Handler
Specifications
Manufacturer
Gehl
Model
RS6-34 GEN:3Telescopic Handler
Year
2022
Category
Telehandlers
Subcategory
Telescopic Handlers
Approximate Weight
15,100 lbs or 6850 kg
Aspiration
Turbocharged or Turbocharged
Axle Manufacturer
Dana or Dana
Brakes
4-Wheel Hydraulically Actuated Internal Wet-Disc Brake or 4-Wheel Hydraulically Actuated Internal Wet-Disc Brake
Capacity at Maximum Forward Reach
900 lbs or 409 kg
Capacity at Maximum Lift Height
4,000 lbs or 1815 kg
Frame Leveling
10deg or 10deg
Fuel Capacity
29 gal or 110 L
Ground Clearance
14" or 350 mm
Hydraulic Reservoir Capacity
35 gal or 133 L
Length - Less Forks
16'0" or 4.9 m
Lift Capacity
6,000 lbs or 2722 kg
Manufacturer
Deutz or Deutz
Maximum Forward Reach
23'3" or 7.0 m
Maximum Lift Height
34'3" or 10.4 m
Maximum Reach Below Grade
24" or 610 mm
Maximum Travel Speed
18 mph or 32.5 km/hr
Model
TD 3.6 Tier IV or TD 3.6 Tier IV
Overall Height
7'10" or 2.4 m
Parking Brake
Spring-Applied, Hydraulic Release (SAHR) on Front Axle or Spring-Applied, Hydraulic Release (SAHR) on Front Axle
Power
74 hp or 55 kW
Pump Type
Gear or Gear
Rated Speed
2,300 rpm or 2300 rpm
Selective Steering
4-Wheel 2-Wheel Crab or 4-Wheel 2-Wheel Crab
System Pressure
3,000 psi or 207 bar
Total Capacity
29 gpm or 110 L/min
Transmission
Dana 3-speed Powershift or Dana 3-speed Powershift
Turning Radius
12'6" or 3.8 m
Wheelbase
9'2" or 2.8 m
