Description

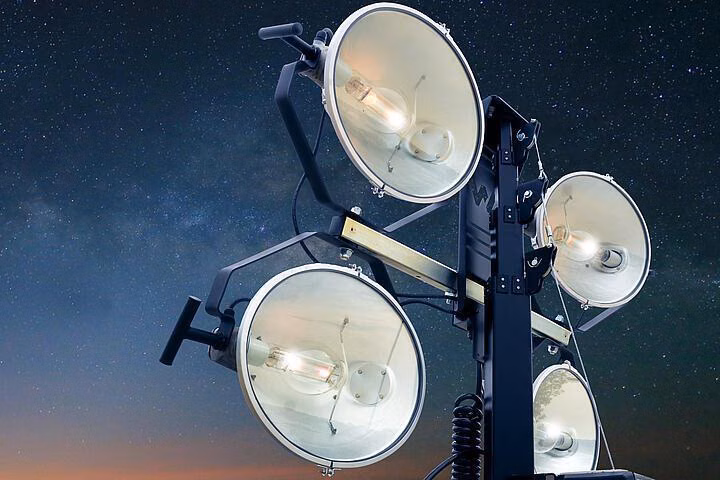

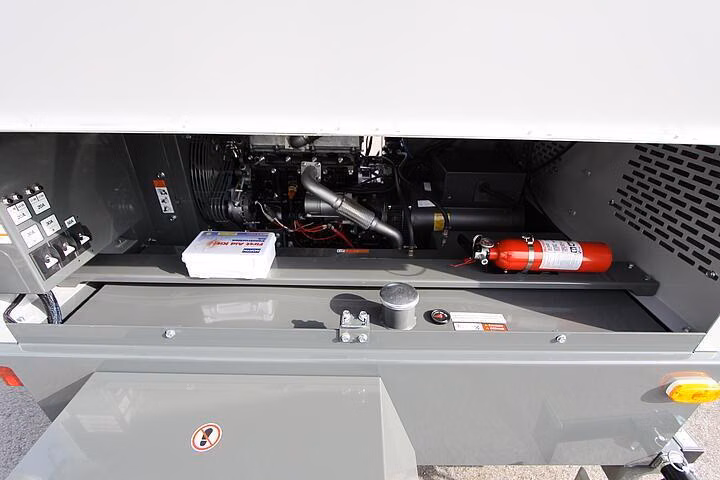

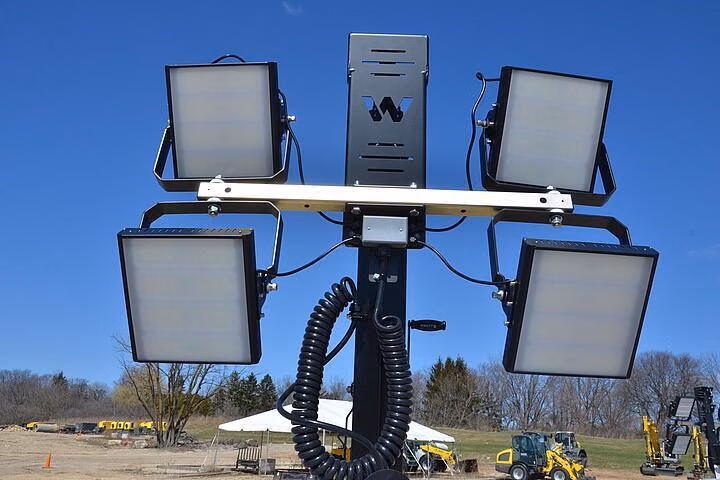

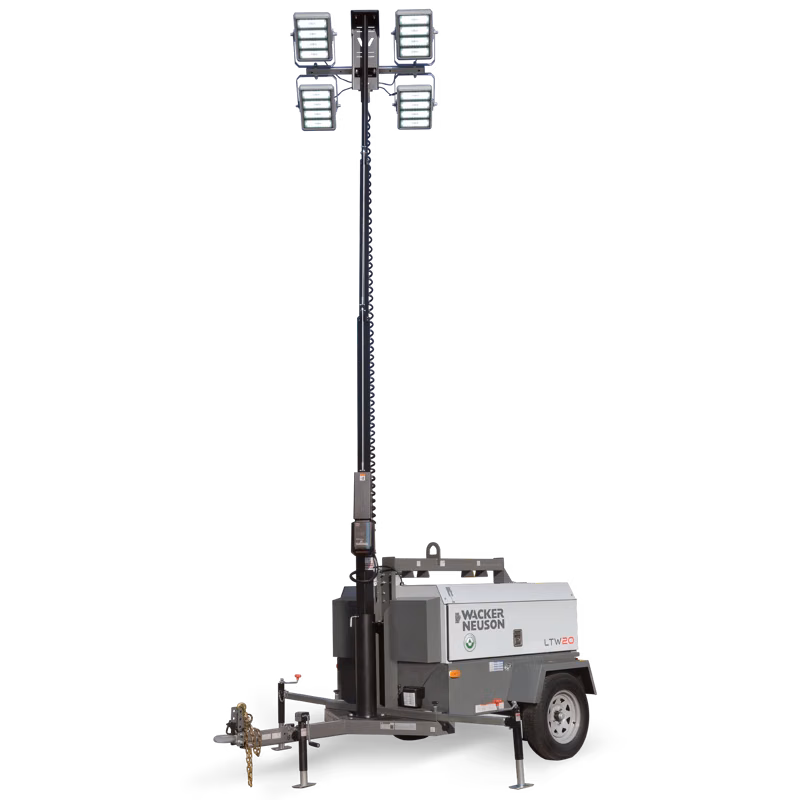

The standard five-section vertical mast light tower is power actuated, extending 23 feet and can rotate 360 degrees for optimum lighting flexibility. The wide body design features a proven engine, long run fuel tank and DOT trailer lights. The light bar design creates greater flexibility in directing the four light fixtures for greater light coverage on the jobsite. Choice between conventional 4 x 1100 Watt Metal Halide (MH) or energy-efficient 4 x 300 Watt LED lights. The wide body vertical mast light towers are perfect for remote applications including oil and gas worksites, mining, and industrial applications. LTW20 Wide Body Vertical Mast Light Towers: wide light towers perfect for off road towing and far away places.
Specifications
Manufacturer
Wacker Neuson
Model
LTW20Z1, LED
Year
2024
Category
Light Towers
Subcategory
Light Towers
Length
131.1 "
Width
75.6 "
Height
100 "
Mast Height Max
23 Foot
cooling Fluid Volume
13.3 qt US
Length for shipping
103.5 "
Width for shipping
75.6 "
Height for shipping
100 "
Coverage Area
5,425.1 ft2
Nominal Current
155 A
Shipping Weight
3,040.2 lb
Nominal Frequency
60 Hz
Phase
1 ~
Operating Weight
3,450.2 lb
Output frequency
60 Hz
Voltage Regulation Steady State
0.5 %
Cylinder Capacity
133 Inch3
Fuel Consumption
1.6 GPH US
Tank Capacity
57 gal US
Oil Filling max
2.7 gal US
Standard (Operating Power)
SAE J1995
Exhaust Gas-limit
IIIB/Tier IV Final
Running time at 100%
34.8 hrs
Main Circuit Breaker Rating
80 A
Bulb power
1,100 W
Illuminance
5 fc
Engine Speed (Power max.)
1,800 1/min
Nominal Engine Speed
1,800 1/min 1,800 1/min
Operating Engine Speed
1,800 1/min
Generator Specification
AVR without Brushes
Cylinder
4

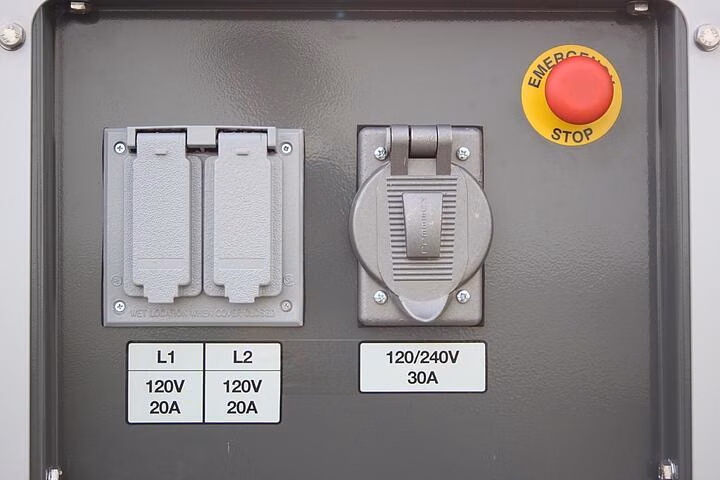

Receptacle type
NEMAL14-30R,TL,125/250V,30A
NEMA Beam Spread
Type 6
Nominal Power [P]
18.6 KW
Nominal Power [S]
20.9 kVA
Generator Rating 1~ (Continuous)
21 KW 21 kVA
Generator Rating 3~ Continuous
36 KW 36 kVA
Engine Type
Diesel engine
Fuel Type
Diesel EN 590
Power Rating max
40.2 hp
Effective Power
31.5 hp
Nominal Voltage
120 V

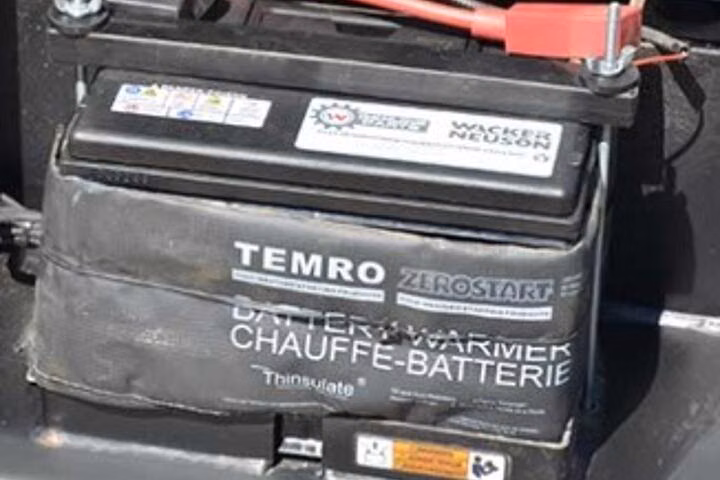

Starter Battery Voltage
12 V
Battery Cold Start Current CCA
750 A
