Description

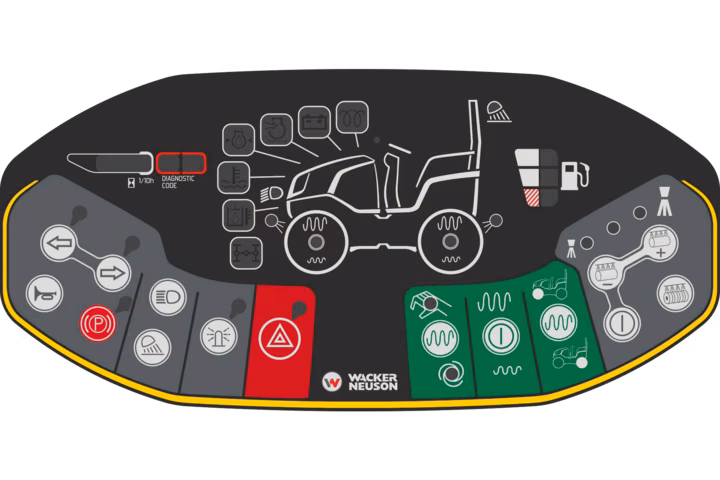

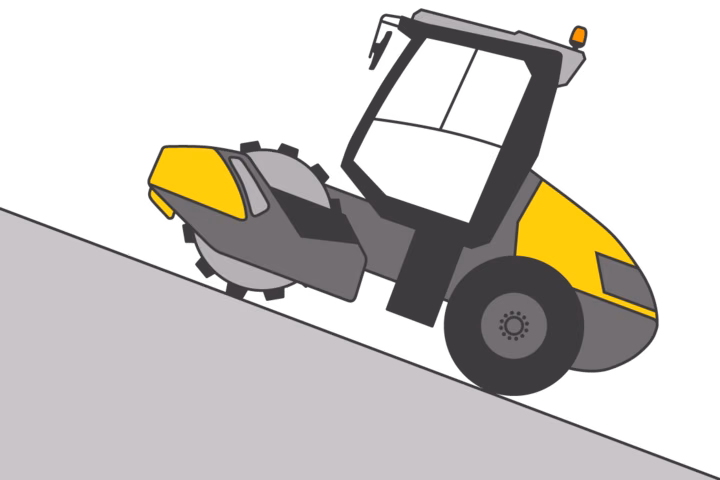

Perfect view in all directions makes work with the Wacker Neuson single drum soil compactors safe and comfortable. Because of the compact design, the operator always has the working area and the drums in view from his seat. With a large departure angle and outstanding gradeability, it is easy to maneuver even on uneven terrain. The simple operation via an intuitively-designed display and joystick also make working easier and ensure that the operator is familiar with the machine in no time. RC70 Drum rollers: Powerful compaction on any terrain.
Specifications
Manufacturer
Wacker Neuson
Model
RC70 US
Year
2024
Category
Compaction Roller
Subcategory
Drum Rollers
Length
173.6 "
Curb clearance (left)
13.8 "
Curb clearance (right)
13.8 "
Total height with cabin
115.2 "
Total height with ROPS
112.4 "
Curb clearance right
2.8 "
Curb clearance left
3.1 "
Ground clearance Middle
12.5 "
Turning radius inside
130.3 "
Wheelbase
90.8 "
Turning radius outside
196.5 "
Pendulum Angle +/-
10 °
Slope Angle (front)
38 °
Slope Angle (rear)
42 °
Width Over Tires (rear)
64.6 "
Wheel size (rear)
AW 14.9-24 8 TL
Gradeability
55 %
Dry Weight
14,131.6 lb
Gross Vehicular Weight
14,528.5 lb
Empty weight with cabin
14,131.6 lb
Empty weight with ROPS
13,646.6 lb
Gradeability max without vibration
60 %
Linear load with vibration level I (front)
535.39 lb/in
Linear load with vibration level II (front)
456.74 lb/in
Compaction Force Level I (Front)
35,295 lbf
Compaction Force Level II (Front)
30,124 lbf
Compaction Force I (rear)
5,620 lbf
Compaction Force II (rear)
5,620 lbf
French classific., data/class
30,9/VM2
Vibration frequency Level I (front)
30 Hz
Vibration frequency Level II (front)
42 Hz
Centrifugal Force Level I (front)
28,101 lbf
Centrifugal Force Level II (front)
21,357 lbf
Static Cross Slope
52 °
Operating Weight
14,418.2 lb
Operating Weight, max
17,725.18 lb
Operating Width
66.1 "
Operating weight with roll over protecting structure
13,933.2 lb
Operating weight with cabin
14,418.2 lb
Cylinder capacity
203.3 Inch3
Effective Power
74.3 hp
Standard Effective Power
ISO 14396
Fuel Tank Capacity
32.5 gal US
Exhaust-gas limit
US TIER 4
Exhaust aftertreatment
DOC-DPF
CO (NRTC)
0.1 g/KWh
NRTC (CO2)
807.2 g/KWh
HC + NOx (NRTC)
3 g/KWh
Wheel load per tire (rear)
2,821.9 lb
Amplitude Level I (front)
0.0673 "
Amplitude Level II (front)
0.026 "
Static linear load (front)
133.15 lb/in
Travel Speed
0 - 7.8 m/H
Nominal Engine Speed
2,200 1/min
Engine Designation
V3307-CR-T
Starter battery Voltage
12 V
Battery capacity (nom value)
152 Ah
Number of tires (rear)
2.0
