Description

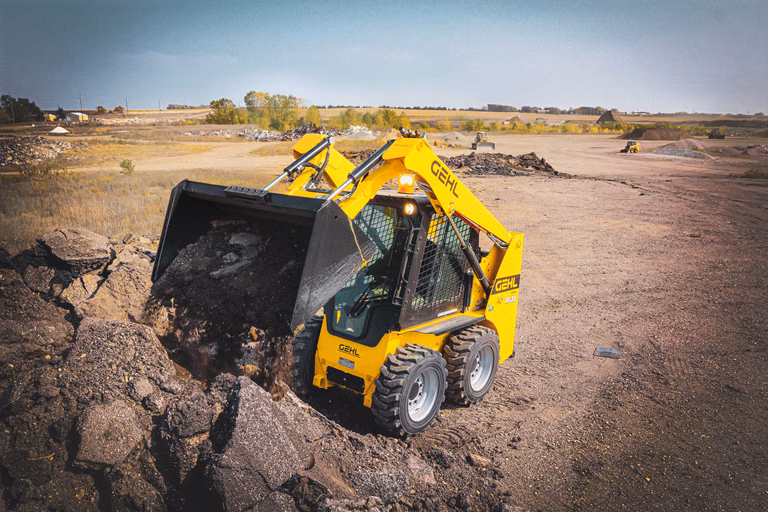

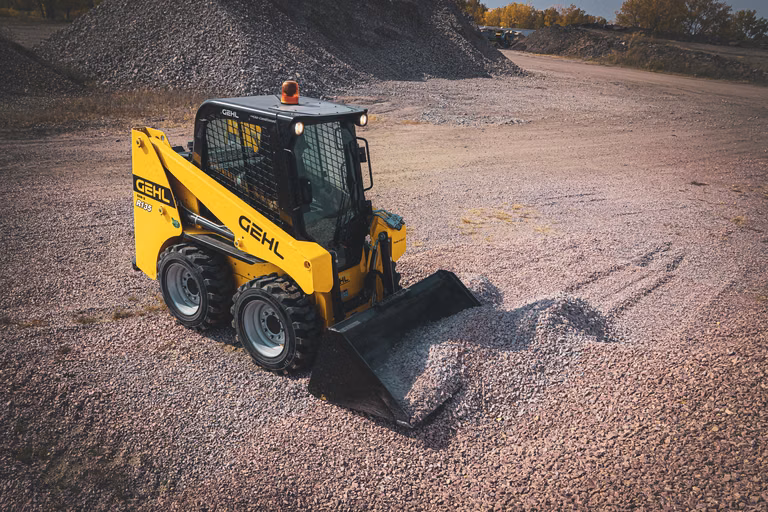

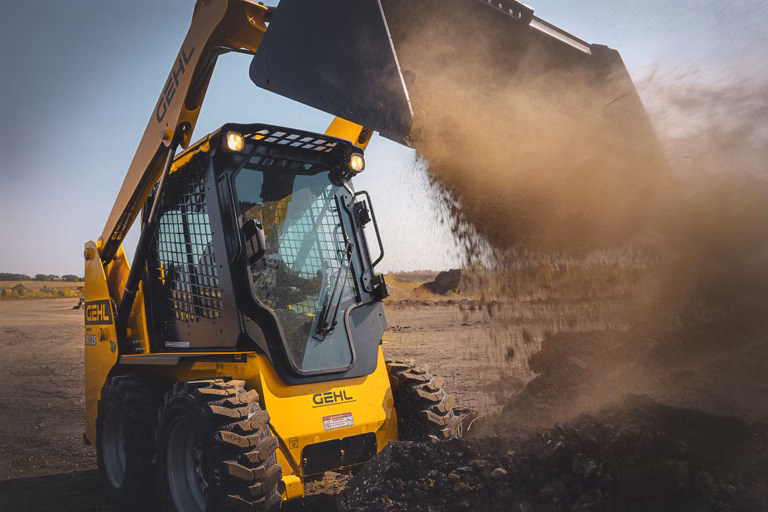

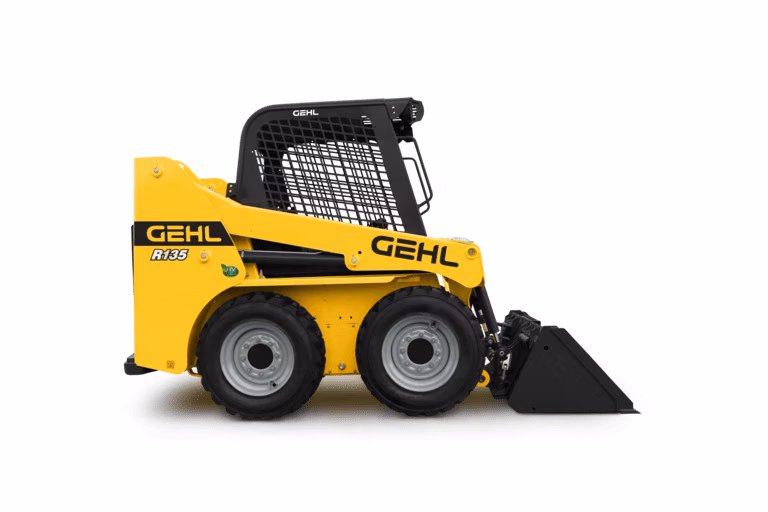

Born through the challenges of farm work but built for success everywhere else, the compact R135 GEN:2 delivers extra lifting capacity for those who need a nimble yet strong Skid Loader. Featuring power where it matters, this machine easily navigates through narrow gates and is more manageable during transport—getting you to wherever work needs doing, without causing a commotion. This new version of the R135 is packed with intuitive controls and designed for comfort, helping reduce operator fatigue during long days on the job. Low-effort controls make difficult jobs a cinch, and an air-ride seat along with other optional features means you'll go home at the end of a tough day without feeling like you've been hit by a ton of bricks.
Specifications
Manufacturer
Gehl
Model
R135 GEN:2
Year
2024
Category
Loaders
Subcategory
Compact Loaders
Rated Operating Capacity
1350 lb
Rated Operating Capacity with Optional Counterweight
1499 lb
Unladen weight
5255 lb
Travel speed (unladen)
8 mph
Standard tires
10.00x16.5 HD
Fuel tank
16 US gal
Displacement
0.58 US gal
Noise to environment (LwA)
101 dB
Whole-Body Vibration (ISO 2631-1)
0.81 m/s²
Vibration to whole hand/arm
< 1.77 m/s²
Overall Operating Height - Fully Raised
144 in
Rollback at ground
28 °
Height to Hinge Pin – Fully Raised
110 in
Overall Height to top of ROPS
76 in
Dump angle at full height
40 °
Dump height
83 in
Overall length with bucket
121 in
Dump reach - Full height
23 in
Seat to ground height
34 in
Wheelbase
37 in
Overall width less bucket
54 in
Bucket Width
54 in
Ground clearance
8 in
Overall length - Less Bucket
93 in
Clearance Radius - Front with Bucket
73 in
Clearance Circle - Front without Bucket
44 in
Clearance Circle - Rear
54 in
Engine brand
Yanmar
Engine model
4TNV88C
Engine norm
Stage IIIA, Stage V, Tier 4 final
Gross Power
34.30 kW
Net Power
33.20 kW
Max torque / Engine rotation
108 ft/lbs / 1820 rpm
Power source
Diesel
Starter
2.30 kW
Battery voltage
12 V
Standard flow - Auxiliary hydraulics
17 US gpm
Quick Enquiry
Loaders Gehl Items for Sale Lowell,
Find this Gehl R135 GEN:2 at Lowell, IN
