Description
The Hyundai HX55ACR is a compact hydraulic excavator equipped with a low-emission Tier 4 Final compliant diesel engine. It offers efficient operation and increased power.
Specifications
Manufacturer
Hyundai
Model
HX55ACR
Year
2024
Category
Excavators
Subcategory
Compact Excavators

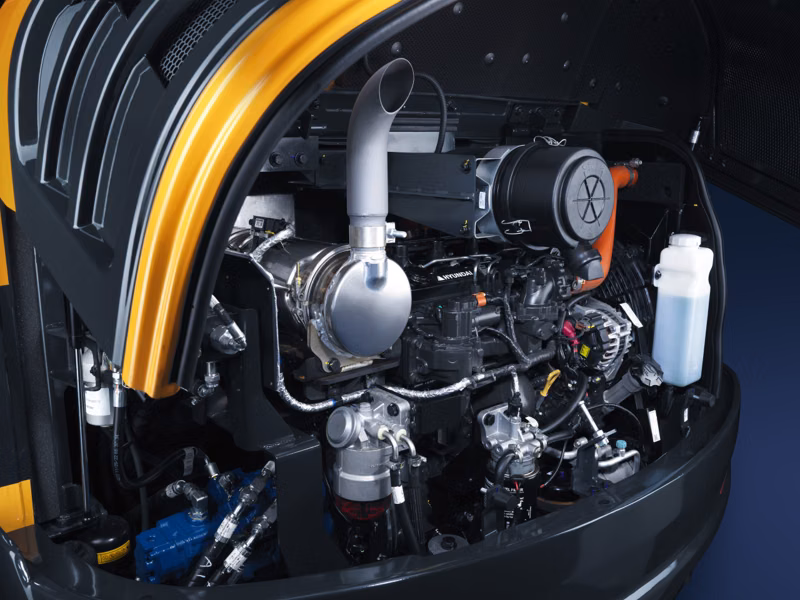

ENGINE MODEL
Yanmar / 4TNV86CT
NET POWER
45 hp (33.6 kW) at 2,400 rpm
MAX DIGGING DEPTH (FT/IN)
11' 6" (3,500 mm) - 12' 4"( 3.750 mm)
MAX DIGGING REACH
19' 8" ( 5.990 mm) 20'" (6,230 mm)
TAIL SWING RADIUS (FT/IN)
8' 4" (2,540 mm) - 8' 6" (2,580 mm)
OPERATING WEIGHT
12,460 lb (5,650 kg )
BUCKET RANGE
0.20 yd3 (0.15 m3)
SWING SPEED
10.1 rpm
TRAVEL SPEED (MPH)
1.6/2.9 mph (2.6/4.7 km/hr)
BUCKET BREAKOUT FORCE
9,567 lbf (4,340 kgf) SAE
ARM CROWD FORCE
6,050 lbf (2,744 kgf) SAE
