Description

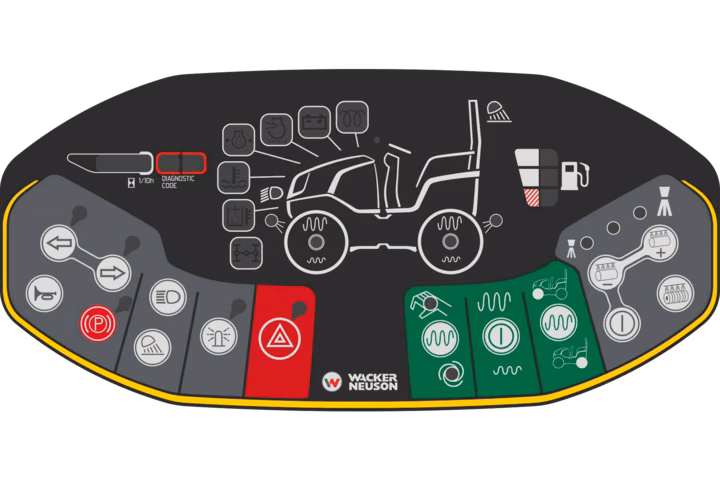

Perfect view in all directions makes work with the Wacker Neuson single drum soil compactors safe and comfortable. Because of the compact design, the operator always has the working area and the drums in view from his seat. With a large departure angle and outstanding gradeability, it is easy to maneuver even on uneven terrain. The simple operation via an intuitively-designed display and joystick also make working easier and ensure that the operator is familiar with the machine in no time. RC70 Drum rollers: Powerful compaction on any terrain.
Specifications
Manufacturer
Wacker Neuson
Model
RC70p US
Year
2025
Category
Compaction Roller
Subcategory
Drum Rollers

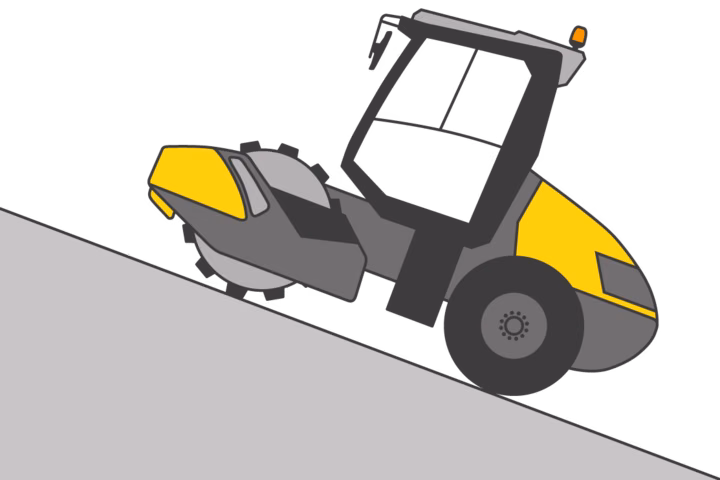

Gradeability
55 %
Dry Weight
13,845 lb
Gross Vehicular Weight
14,241.9 lb
Empty weight with cabin
13,845 lb
Empty weight with ROPS
13,360 lb
Gradeability max without vibration
60 %
Linear load with vibration level I (front)
537.64 lb/in
Compaction Force Level I (Front)
35,520 lbf
Compaction Force I (rear)
5,620 lbf
French classific., data/class
30,6/VPM2
Vibration frequency Level I (front)
30 Hz
Centrifugal Force Level I (front)
28,101 lbf
Static Cross Slope
52 °
Operating Weight
14,131.6 lb
Operating Weight, max
15,256 lb
Operating Width
66.1 "
Operating weight with roll over protecting structure
13,646.6 lb
Operating weight with cabin
14,131.6 lb
Cylinder capacity
203.3 Inch3
Effective Power
74.3 hp
Standard Effective Power
ISO 14396
Fuel Tank Capacity
32.5 gal US
Exhaust-gas limit
EU Stage V
Exhaust aftertreatment
DOC-DPF
CO (NRTC)
0.1 g/KWh
NRTC (CO2)
807.2 g/KWh
HC + NOx (NRTC)
3 g/KWh
Wheel load per tire (rear)
2,821.9 lb
Length
173.6 "
Curb clearance (left)
13.4 "
Curb clearance (right)
13.4 "
Total height with cabin
115.2 "
Total height with ROPS
112.4 "
Curb clearance right
2.8 "
Curb clearance left
3.1 "
Ground clearance Middle
12.5 "
Turning radius inside
130.3 "
Wheelbase
90.8 "
Turning radius outside
196.5 "
Pendulum Angle +/-
10 °
Slope Angle (front)
38 °
Slope Angle (rear)
42 °
Width Over Tires (rear)
64.6 "
Wheel size (rear)
TR 14.9-24 8 TL
Surface of the pad feet
17.5 Inch2
Height Ramming shoe
3.1 "
