Description

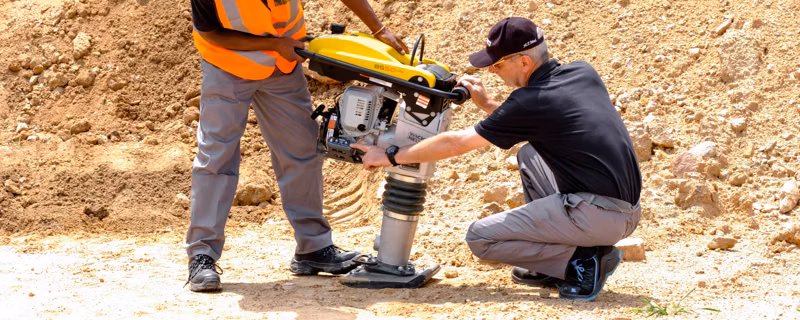

Wacker Neuson's 4 stroke rammers are designed for high performance and long life. The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results. The compact design and low center of gravity is ideal for the compaction of cohesive and mixed soils in trenches and other confined areas.
Specifications
Manufacturer
Wacker Neuson
Model
BS50-4As
Year
2025
Category
Compactors
Subcategory
4 Stroke Rammer
Fuel consumption US gal/h
0.234 gal/h
Impact force kN
16
Impact force lbf
3,597
Operating speed ft/min
23.3
Operating speed m/min
7.1
Operating speed Travel Speed ft/min
24.6 ft per min
Percussion rate max blows/min
680
Ramming shoe size (WxL) in
W x L: 11 x 13.3 in
Ramming shoe size (WxL) mm
280 x 340
Stroke at the ramming shoe in
2.2 in
Stroke at the ramming shoe mm
61
Surface capacity Compaction ft²/h
1,324 ft2 per hour
Surface capacity - Compaction ft²/h
1,281
Surface capacity - Compaction m²/h
119
L x W x H in
26.5 x 13.5 x 37
L x W x H mm
673 x 343 x 940
Operating weight kg
65
Operating weight lb
143
