Description

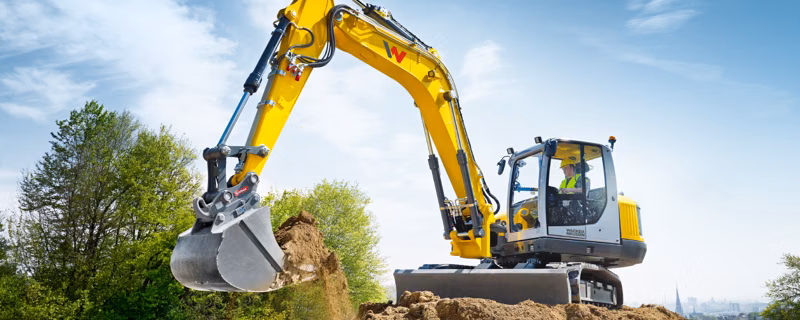

The ET145 is a compact excavator designed for power and productivity. This 14-ton excavator combines the productivity of a larger crawler excavator with the versatility and accessibility of a compact excavator. The 73.9-hp, Tier 4 Final turbo charged engine along with an optimized power train utilizes a constant power concept to deliver maximum horsepower and torque, regardless of the load on the engine. The 127-degree boom swing allows the operator to dig along walls and trenches, work around pipes and dig along traffic lines while maintaining a compact footprint.
Specifications
Manufacturer
Wacker Neuson
Model
ET145
Year
2025
Category
Excavators
Subcategory
Tracked Conventional Tail Excavators
Arm displacement to centre of bucket, left side
25.1 in/25.1 in
Arm displacement to centre of bucket, left side with Hybrid track
25.1 in
Arm displacement to centre of bucket, left side with Rubber/steel track
25.1 in
Arm displacement to centre of bucket, right side
33.3 in/33.3 in
Arm displacement to centre of bucket, right side with Hybrid track
33.3 in
Arm displacement to centre of bucket, right side with Rubber/steel track
33.3 in
Biting force max
15,512 lbf
Boom slewing radius - Left
91.4 in/91.4 in
Boom slewing radius - Left with Hybrid track
91.4 in
Boom slewing radius - Left with Rubber/steel track
91.4 in
Boom slewing radius - Right
104.1 in/104.1 in
Boom slewing radius - Right with Hybrid track
104.1 in
Boom slewing radius - Right with Rubber/steel track
104.1 in
Breakout force max
20,458 lbf
Cabin - specified sound pressure level LpA acc. to ISO 6394
75 dB(A) LpA
Chain width
19.7 in
Chain width with Hybrid track
19.7 in
Chain width with Rubber/steel track
19.7 in
Digging depth max
215.8 in
Digging depth max with Hybrid track
214.3 in
Digging depth max with Rubber/steel track
215.8 in
Digging radius max
343.6 in
Digging radius max with Hybrid track
343.6 in
Digging radius max with Rubber/steel track
343.6 in
Dump height max
234.1 in/235.6 in
Dump height max with Hybrid track
235.6 in
Dump height max with Rubber/steel track
234.1 in
Dumping height
221.3 - 235.6 in
Duty pump
2 variable pumps, 2 gear wheels
Height
600 mm
Insertion depth
139.8 in/138.2 in
Insertion depth with Hybrid track
138.2 in
Insertion depth with Rubber/steel track
139.8 in
Insertion height
336.7 in/338.2 in
Insertion height with Hybrid track
338.2 in
Insertion height with Rubber/steel track
336.7 in
Lift height - Above ground
19.4 in/20.9 in
Lift height - Above ground with Hybrid track
20.9 in
Lift height - Above ground with Rubber/steel track
19.4 in
Operating pressure Slewing gear
4,641 psi
Range
335.7 in/335.2 in
Range with Hybrid track
335.2 in
Range with Rubber/steel track
335.7 in
Rear swivel radius
79.4 in/79.4 in
Rear swivel radius with Hybrid track
79.4 in
Rear swivel radius with Rubber/steel track
79.4 in
Scraping depth - Below ground
20.9 in/19.4 in
Scraping depth - Below ground with Hybrid track
19.4 in
Scraping depth - Below ground with Rubber/steel track
20.9 in
Sound level (LwA) acc. to 2000/14/EC
99 dB(A)
RPM / speed max, without load
2,050 rpm
Stroke - Above ground
19.4 in
Stroke - Below ground
20.9 in
Superstructure slewing speed
11.6 rev/min
Travel speed max
3.1 mph
Turning angle - Boom system to the left
70 degrees/70 degrees
Turning angle - Boom system to the left with Hybrid track
70 °
Turning angle - Boom system to the left with Rubber/steel track
70 °
Turning angle - Boom system to the right
57 degrees/57 degrees
Turning angle - Boom system to the right with Hybrid track
57 °
Turning angle - Boom system to the right with Rubber/steel track
57 °
Width
2,490 mm
Ground clearance
18.9 in
Height
23.6 in
Height with Hybrid track
111.2 in
Height with Rubber/steel track
109.7 in
L x W x H
306.6 x 98 x 109.7 in
Length - Track with Hybrid track
144.2 in
Length - Track with Rubber/steel track
141.9 in
Operating weight
34,284 - 36,012 lb
Shipping weight min
14,917 kg
Transport length with Hybrid track
305.9 in
Transport length with Rubber/steel track
306.6 in
Width
98 in
Width with Hybrid track
98 in
Width with Rubber/steel track
98 in
