Description
ET42 Tracked Conventional Excavator: The boost for every construction site

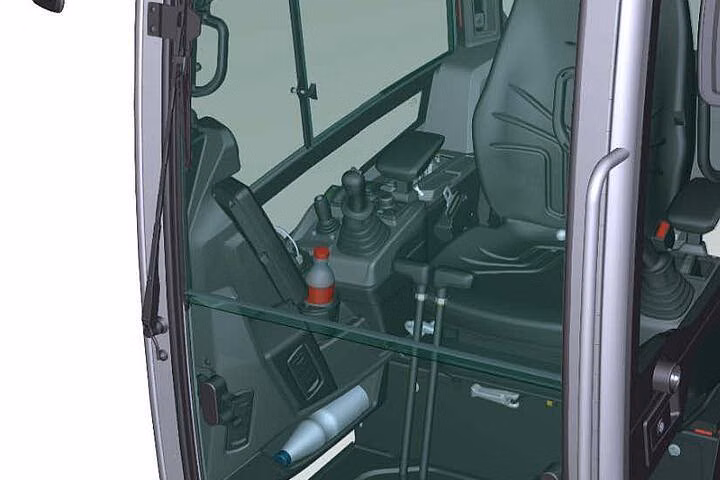

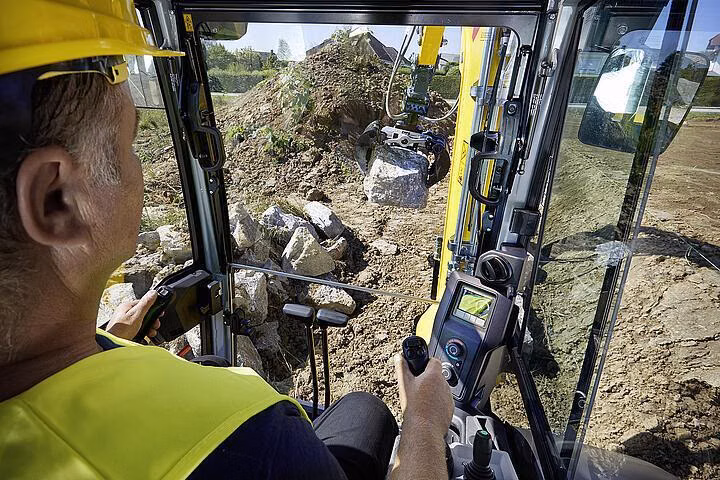

Full speed ahead: the ET42 mini-excavator combines proven technology with a large dose of innovation to lead the 4-metric ton class. It has the usual high lifting and digging forces, as well as fast work cycles. Thanks to modern technologies, emissions are reduced while efficiency is increased. The ET42's powerful engine meets Stage V emissions standards. The intuitive operating concept means this powerhouse is both user-friendly and comfortable for the operator, while offering an excellent view of the working area.
Specifications
Manufacturer
Wacker Neuson
Model
ET42
Year
2025
Category
Excavators
Subcategory
Tracked Conventional Tail Excavators
Superstructure turning speed
9 1/min
Travel speed
3 m/H
Break Out Force Bucket
43.8 kN
Break Out Force Lift Arm
20.8 kN
Length
220.2 "
Operating weight (min.-max.)
8,889 - 11,477.3 lb
Digging depth (max.)
139.5 "
Width
68.9 "
Height
102.7 "
Weight
8,415.05 lb
Cylinder
3,0
Cylinder capacity
101.4 Inch3
Effective power
43.6 hp
Nominal Engine speed
2,000 1/min
Battery capacity (nom. value)
77 Ah
Operating pressure
3,552.5 psi
Flow rate max.
23.8 gal/mi
Operating pressure slewing gear
206 bar
Hydraulikpump
Axial piston pump
Shipping weight
8,415.1 lb
Protection class
Stage V
A1 , Height with cab
98.26 in
A2 , Height of dozer blade
14.2 in
A3 , Total height with rotating beacon
102.76 in
B1 , Width of upper carriage
67.77 in
B2 , Width of cab
38.61 in
B3 , Width travel gear
68.95 in
B4 , Width of dozer blade
68.95 in
C , Transport length short shovel arm
202.75 in
C , Transport length long shovel arm
202.99 in
D1 , Digging depth max., short shovel arm
131.75 in
D2 , Digging depth max., long shovel arm
139.63 in
E1 , Piercing depth max., short shovel arm
83.29 in
E2 , Piercing depth max., long shovel arm
90.34 in
F1 , Piercing height max., short shovel arm
205.27 in
F2 , Piercing height max., long shovel arm
210.4 in
G1 , Dumping height max., short shovel arm
140.78 in
G2 , Dumping height max., long shovel arm
145.9 in
H1 , Digging radius max., short shovel arm
216.27 in
H2 , Digging radius max., long shovel arm
223.71 in
I1 , Max. reach at ground level (short shovel arm)
211.81 in
I2 , Max. reach at ground level (long shovel arm)
219.46 in
J , Tail swing radius
52.6 in
K1 , Boom offset max. (to center of bucket right side)
19.42 in
K2 , Boom offset max. (to center of bucket left side)
20.96 in
L , Stacking height max. (dozer blade above surface)
16.47 in
M , Digging depth max. (dozer blade below surface)
22.2 in
N , Length travel drive
86.6 in
O1 , Max. swivel angle (arm system to the left)
70 °
O2 , Max. swivel angle (arm system to the right)
55 °
Q1 , Boom swing radius center
85.7 in
Q2 , Boom swing radius right
81.2 in
Q3 , Boom swing radius left
71.71 in
