Description

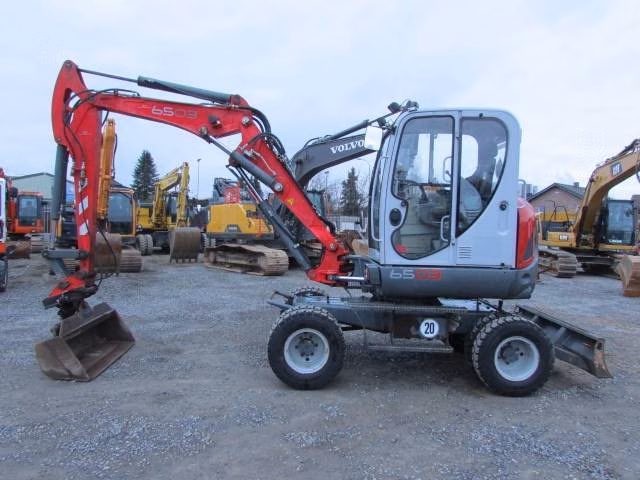

The 6503 wheeled excavator offers impressive power and speed matched with simple operation The unit s compact size speed and mobility make it the ideal machine for a variety of applications that require the excavator to move around the job site or to and from the job site in urban areas The unit saves time and money because it does not need to transported on a truck
Specifications
Manufacturer
Wacker Neuson
Model
6503
Year
2025
Category
Excavators
Subcategory
Wheeled Excavators
Arm displacement max, to center of bucket, left side
21.12 in
Arm displacement max, to center of bucket, right side
29.2 in
Biting force max
6,537.5 lbf
Breakout force max
9,891.6 lbf
Digging depth max
139.4 in
Digging depth max (long dipper stick)
150.35 in
Digging depth max (short dipper stick)
138.53 in
Digging radius max
245.7 in
Digging radius max (short dipper stick)
245.7 in
Digging radius max (long dipper stick)
257.01 in
Dump height max
169.5 in
Dump height max (long dipper stick)
178.01 in
Dump height max (short dipper stick)
170.56 in
Insertion depth max (long dipper stick)
108.43 in
Insertion depth max (short dipper stick)
97.44 in
Insertion height max (long dipper stick)
243.77 in
Insertion height max (short dipper stick)
235.93 in
Lift height
19.46 in
Operating pressure Slewing gear
3,408.4 psi
Range max (long dipper stick)
237.9 in
Range max (short dipper stick)
249.72 in
Rear swivel radius
58.27 in
Scraping depth
11.7 in
Sound level (LwA) acc. to 2000/14/EC
98 dB(A) LwA
Stroke above ground, max
19.3 in
Stroke below ground, max
11.2 in
Transport length max (long dipper stick)
242.63 in
Transport length max (short dipper stick)
240.5 in
Travel speed 30 km/h model, max
18.6 mph
Travel speed 20 km/h model, max
12.4 mph
Width of the revolving superstructure
72.18 in
