Description

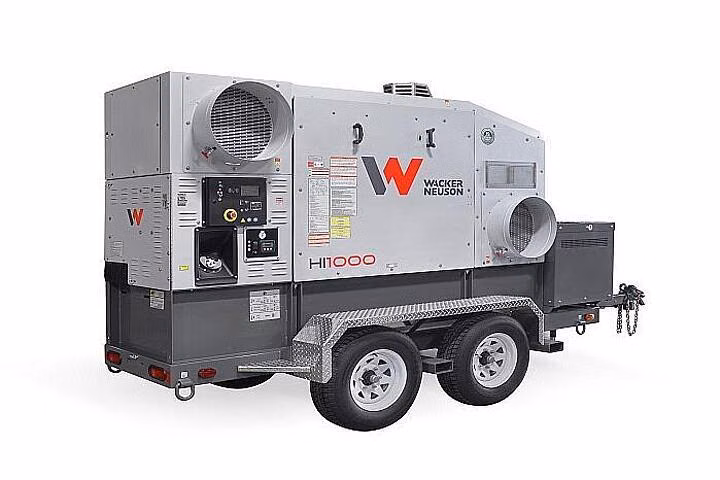

The HI1000 is Wacker Neuson's highest capacity indirect fired air heater. Available with or without a fuel tank. For remote applications, our DGM version includes a custom extended service genset. All versions are ETL certified.
Specifications
Manufacturer
Wacker Neuson
Model
HI1000-DGM
Year
2025
Category
Heaters
Subcategory
Indirect Fired Air Heaters
Air flow m³/h
9,174.7
Air flow CFM
5,400
Current max A
141.7
Current Service A
70.8
Diameter Air Inlet (qty 2) mm
512.8
Diameter Air Inlet (qty 2) in
20 in
Diameter Air Outlets (qty 4) in
12 in
Diameter Air Outlets (qty 2) in
20
Diameter Air Outlets (qty 3) in
16
Diameter Air Outlets (qty 3) mm
410.2
Frequency Generator Hz
60
Heat efficiency %
83
Heating power Heat Input BTU/h
890,000 BTU per h
Length Max Duct - 1 x 20in Return ft
1 x 20in Return: 50 ft
Length Max Duct - 1 x 20in Return m
15.2
Length Max Duct - 1 x 20in Supply m
60.9
Length Max Duct - 1 x 20in Supply ft
200
Length Max Duct - 2 x 16in Supply m
30.4
Length Max Duct - 2 x 16in Supply ft
100
Length Max Duct - 3 x 12in Supply m
30.4
Length Max Duct - 3 x 12in Supply ft
100
Operating performance Burner hp
0.33
Operating temperature Air Temperature Rise ° F
134 F
Power Blower kW
3.73
Runtime Burner (75%) h
At 75%: 37.5 h
Runtime Burner (100%) h
27.5
Tank capacity Burner US gal
172 gal
Voltage Generator V
120
L x W x H (Overall) mm
5009 x 1549 x 2557
L x W x H (Overall) in
197.2 x 61 x 100.7
L x W x H (Shipping) mm
5047 x 1549 x 2582
L x W x H (Shipping) in
198.7 x 61 x 101.7
Operating weight (With Fuel) kg
2,336
Operating weight (With Fuel) lb
5,150
Weight (Without Fuel) kg
1,871
Weight (Without Fuel) lb
4,124.8
