Description
SM60 Utility Track Loader: Do More with Less

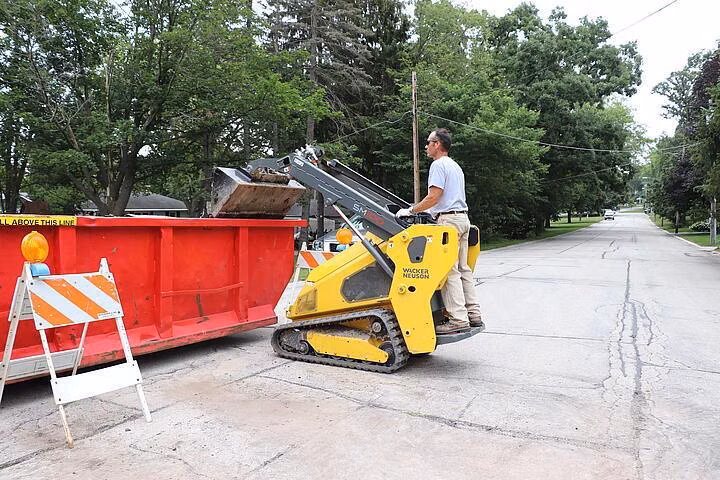

The SM60 is comfortable for operators, while maintaining its trim and compact profile, utilizing its wide spring suspension for both enhanced comfort as well as enhanced stability. In addition, the SM60 utilizes a gas motor for DIY home owners and landscape contractors who use gas motor powered lawnmowers. With a purpose designed lift capacity and high hinge pin, the SM60 excels at loading onto high sided trucks and dumpsters,
Specifications
Manufacturer
Wacker Neuson
Model
SM60
Year
2025
Category
Loaders
Subcategory
Utility Track Loaders
Ground Pressure (standard track)
4.4 psi
Travel speed
3.9 m/H
Operating weight
2,760.2 lb
Flow rate
12.2 gal/mi
Auxiliary relief pressure
3,045 psi
Fuel Tank capacity
14 gal US
Tip Load
1,719.6 lb
Rated Operating Capacity at 50% Tip Load
859.8 lb
Rated Operating Capacity at 35% Tip Load One
601.9 lb
Overall Length without bucket
75.6"
Overall Length with Bucket
98.5"
Overall width without bucket
35.5"
Height
54.8"
Bucket Hinge Pin Height
75.6"
Bucket roll back at ground
25 °
Bucket roll back at maximum height
92 °
Angle of departure
23 °
Bucket dump height at maximum height
103.7"
Bucket dump angle at maximum height
37 °
Track width
7"
Ground clearance
6.8"
Length of Track on Ground
32.5"
Dump reach at maximum height
26.9"
