Description

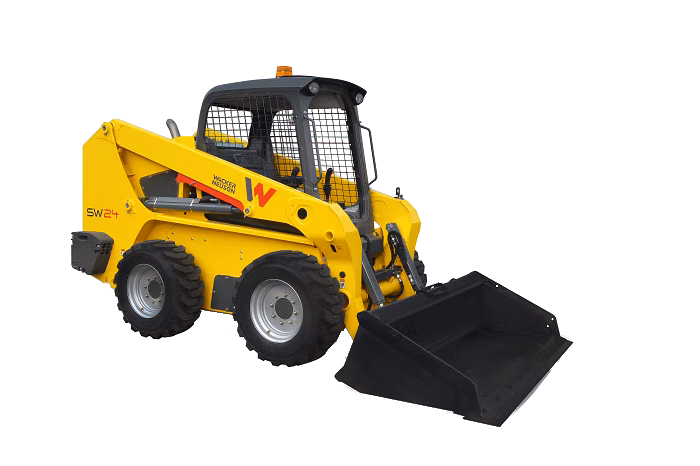

The SW24 brings power and efficiency to any job site. This unit delivers 2,400 pounds of rated operating capacity at 50% and a lift height up to 126.8 inches. The machine is equipped with a 74.3 hp (55 kW) turbo-charged Perkins Tier 4 Final engine. Available with Mechanical Hand-Foot, EH Hand-Foot, and Selectable EH (ISO and H-Pattern) controls, the machine can fit the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue.
Specifications
Manufacturer
Wacker Neuson
Model
SW24 Series II
Year
2025
Category
Skid Steers
Subcategory
Skid Steer Loaders
Rated Operating Capacity 50%
1,088 kg
Angle of departure
23 °
Tipping angle (bucket dump) w/bucket at max height
44 °
Breakout force max - Bucket
31.1 kN
Breakout force max - Boom
33.6 kN
Dump angle
45 °
ROC
50%: 2400 lbs (1089 kg)
2-speed drive maximum speed
12 mph (19.3 kph)
Travel speed Low
11.6 km/h
Travel speed High
19.3 km/h
Height top of ROPS
2,113 mm
Overall length w/ bucket
3,693.8 mm
Overall length w/o bucket
2,984.8 mm
Height Hinge Pin Max
3,221 mm
Dump height max at max height
2,534 mm
Ground clearance
227.7 mm
Width
1,825.5 mm
Wheelbase
1,267.1 mm
Overall length with bucket
3,662 mm
Overall length without bucket
2,948 mm
Overall width with bucket
1,830 mm
Overall width without bucket
1,778 mm
Overall height
2,080 mm
Wheelbase one
1,164 mm
Hinge pin height
3,221 mm
Dump height max
2,419 mm
Bucket rollback at max stroke height
45 °
Dump reach
574 mm
Bucket rollback at ground level
30.5 °
Ground clearance one
240 mm
Angle of departure
25 °
Length (w/ standard bucket)/width/height
145.4"(3693 mm) x 79.1"(2009 mm) x 83.2"(2113 mm)
Pin height
126.8"(3221 mm)
Multi-purpose tires
12.0-16.5, 12 PR
