Description

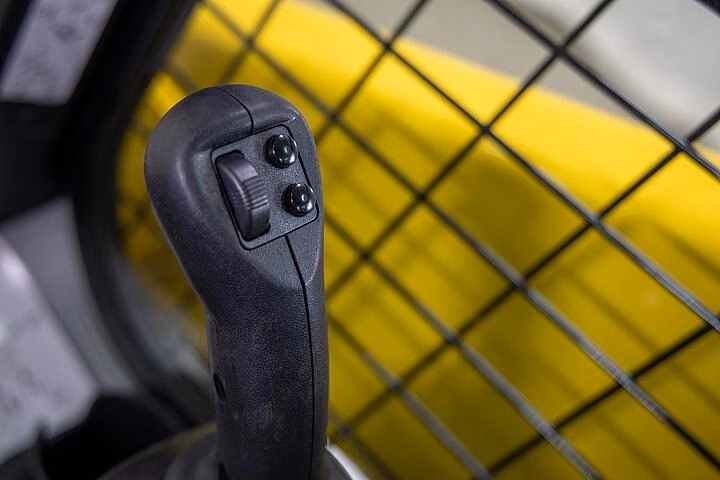

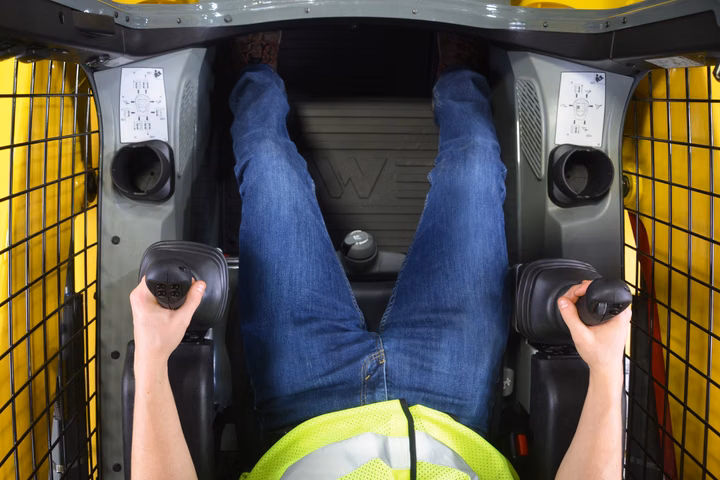

The SW28 brings maximum reach making it ideal for loading and unloading. The SW28 delivers 2,800 pounds of rated operating capacity at 50% and a lift height up to 134.8 inches. The machine is equipped with a 74.3 hp turbo-charged Kohler Tier 4Final engine. Available with Mechanical Hand-Foot, EH Hand-Foot, and Selectable EH (ISO and H-Pattern) controls, the machine can fit the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue, increasing productivity.
Specifications
Manufacturer
Wacker Neuson
Model
SW28 Series II
Year
2025
Category
Skid Steers
Subcategory
Skid Steer Loaders
Rated Operating Capacity 50%
1,270 kg
Angle of departure
23 °
Tipping angle (bucket dump) w/bucket at max height
44 °
Breakout force max - Bucket
31.1 kN
Breakout force max - Boom
36.8 kN
Travel speed (low)
11.9 km/h
Travel speed (high)
19.3 km/h
ROC
50% 2800 lbs (1270 kg)
2-sepped drive maximum
12 mph (19.3 kph)
Height top of ROPS
2,113 mm
Overall length w/ bucket
3,693.8 mm
Overall length w/o bucket
2,984.8 mm
Height Hinge Pin Max
3,425 mm
Dump height max at max height
2,739 mm
Ground clearance
227.7 mm
Width
1,825.5 mm
Wheelbase
1,267.1 mm
Length (w/ standard bucket) / width / height
145.4"(3693 mm) x 79.1"(2009 mm) x 83.2"(2113 mm)
Pin height
134.8"(3424 mm)
Standard Duty Tires
12 x 16.5"
