Description

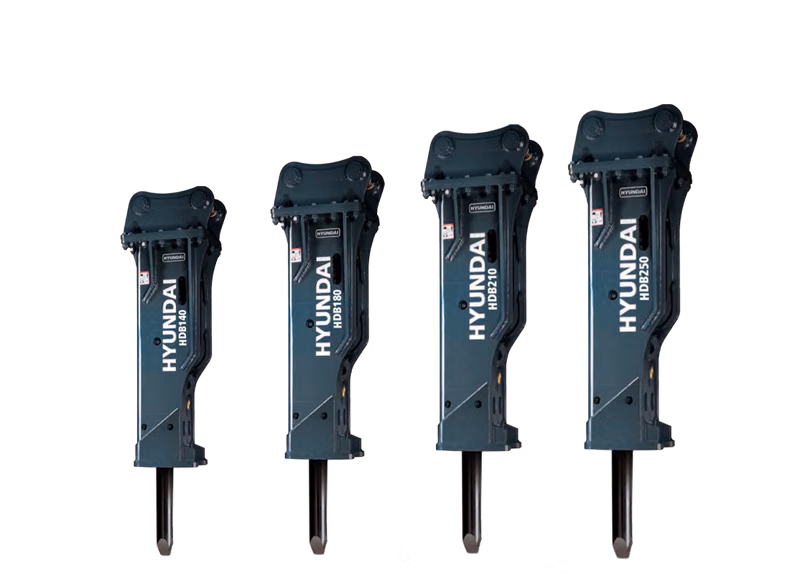

Hyundai midsize breakers are suited to fit excavators ranging from 14 ton to 25 ton. If equipped on a Hyundai excavator, standard equipped mounting brackets are designed to match up perfectly with the Hyundai linkage. If you would like to use on another brand of excavator, Hyundai dealers can match a custom mounting bracket to fit any machine.
Specifications
Manufacturer
Hyundai
Model
HDB210
Year
2025
Category
Breakers
Subcategory
Midsize Breakers
Operating Weight (Top Box BKT)
1738 kg (3832 lb)
Operating Weight (Side BKT)
1647 kg (3631 lb)
Impact Power
4000 Ft Lbs (5450 J)
Suitable Excavator
18~25 ton (39683~55116 lb)
Overall Length (w/STD MTG BKT)
2764 mm (108.8 inch)
Overall Length (w.o/MTG BKT)
2395 mm (94.3 inch)
Overall Length (Side BKT)
2348 mm (92.4 inch)
Chisel Out Dia
135 mm (5.3 inch)
Chisel Length
1250 mm (49.2 inch)
Setting Pressure
210 kgf/cm<sup>2</sup> (2987 psi)
Working Pressure
130~170 kgf/cm<sup>2</sup> (1849~2418 psi)
Oil Flow
110~160 lpm (29.1~42.3 gpm)
Blow Rate (H/ Speed)
350~500 (450~ 600) BPM
Back Head N2 Gas Pressure
11 kgf/cm<sup>2</sup> (156 psi)
