Description

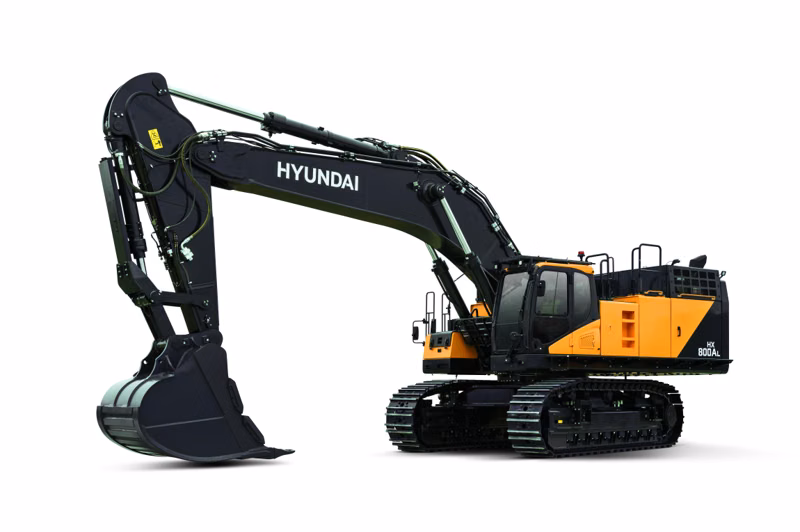

Powered by a Perkins 2806J Stage V compliant diesel engine, the HX800A L has new features like intelligent boom float, swing priority mode, D-Eco power hydraulic system, 8-inch touch screen LCD monitor, heated seats, newly designed foot pedals, configurable joystick shortcut button, and fleet management system, which all can help improve productivity on hard to handle jobs.
All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power, and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
Specifications
Manufacturer
Hyundai
Model
HX800A L
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
NET POWER
528.6 hp (389 kW) at 2,100 rpm
OPERATING WEIGHT
181,000 lb (82,100 kg)
BUCKET RANGE
4.5 yd³ (3.4 m³) - 6.9 yd³ (5.2 m³)
SWING SPEED
0–7.4 rpm
TRAVEL SPEED (MPH)
1.9–3.0 mph (3.0–4.9 km/h)
BUCKET BREAKOUT FORCE
Standard arm: 75,400 lbf (37,700 kgf) ISO
ARM CROWD FORCE
Standard arm: 72,300 lbf (32,800 kgf) ISO
MAX DIGGING DEPTH (FT/IN)
Standard arm: 23' 4" (7,120)
MAX DIGGING REACH
Standard arm: 38' 0" (11,595)
TAIL SWING RADIUS (FT/IN)
13' 5" (4,100)
ENGINE MODEL
Perkins 2506J
