Description

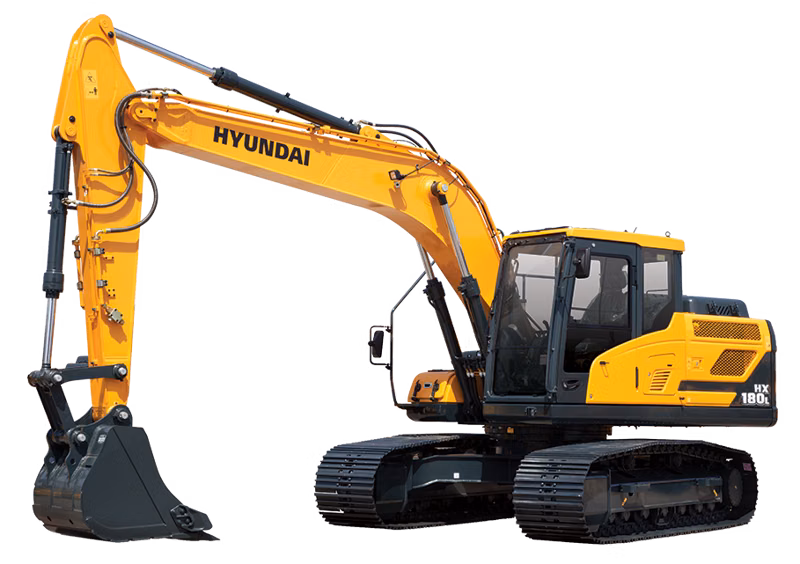

Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. Adding to that success formula, the Hyundai HX series features eco-friendly, high-performance engines that meet Tier 4 Final emission requirements. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours. HX series is designed with the operator in mind. A key feature of the new operator's cab in each HX series excavator is the convenient clustering of electronic controls and monitoring functions, resulting in improved operator accuracy and efficiency.
Specifications
Manufacturer
Hyundai
Model
HX180L
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Operating Weight
19,484 Kg (42,955 Lbs)
Swing Speed
10.3 Rpm
Bucket Breakout Force
12,600 [13,680] Kgf ( 27,780 [30,160] Lbf ) ISO
Arm Crowd Force
8,190 [8,890] Kgf ( 18,060 [19,600] Lbf ) ISO
Engine Model
Perkins 1204F
Net Power
128 Hp (96 Kw) At 2,050 Rpm
Travel Speed (Mph)
5 Km/Hr (3.1 Mph) / 3.2 Km/Hr (2.0 Mph)
Bucket Range
0.51 Yd3 - 1.37 Yd3 ~ 0.39 M3 - 1.05 M3
Max. Digging Depth (Ft/In)
6,060 Mm (19' 11")
Max. Digging Reach
9,020 Mm (29' 7")
Tail Swing Radius (Ft/In)
2,480 Mm (8 Ft 2 In)
