Description

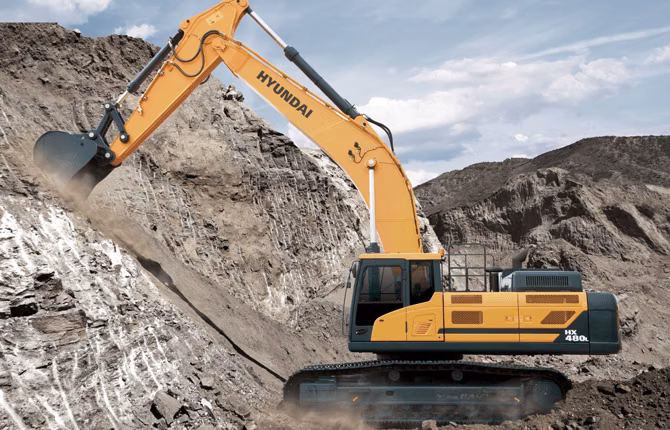

Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. Adding to that success formula, the Hyundai HX series features eco-friendly, high-performance engines that meet Tier 4 Final emission requirements. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours. HX series is designed with the operator in mind. A key feature of the new operator's cab in each HX series excavator is the convenient clustering of electronic controls and monitoring functions, resulting in improved operator accuracy and efficiency.
Specifications
Manufacturer
Hyundai
Model
HX480L
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Operating Weight
51,040 Kg (112,520 Ibs)
Swing Speed
8.6 Rpm
Bucket Breakout Force
28,360 Kgf (62,520 Lbf)
Arm Crowd Force
22,150 Kgf (48,830 Lbf)
Engine Model
Scania Dc13 084A
Net Power
424 Hp (316 Kw) At 1,900 Rpm
Travel Speed (Mph)
High - 5.3 Km/Hr (3.29 Mph) / Low - 3.3 Km/Hr (2.05 Mph)
Bucket Range
1.37 M3 - 3.2 M3 / 1.8 Yd3 - 4.19 Yd3
Max. Digging Depth (Ft/In)
7,760 Mm (25 Ft 6 In)
Max. Digging Reach
12,040 Mm (39 Ft 6 In)
Tail Swing Radius (Ft/In)
3,940 Mm (12 Ft 11 In)
