Description

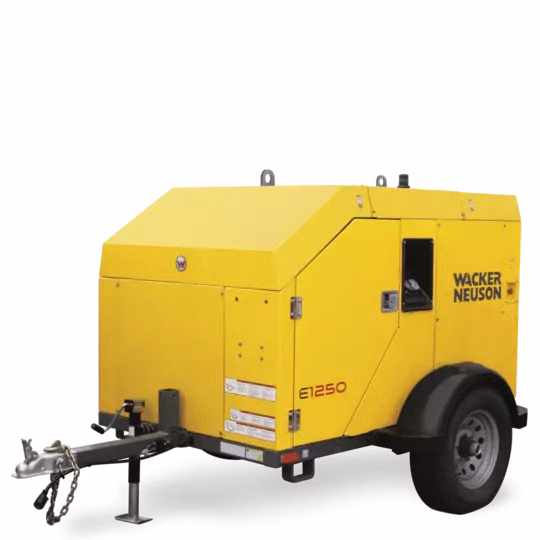

E1250 Hydronic Heaters: easy to transport, simple to use hydronic heater. The E 1250 was designed with the safety features you require and the simple, intelligent operation you desire. All operator interface points are conveniently located in the rear of the machine for simplified operation. Our new concrete cure mode simplifies the guesswork in maintaining proper concrete temperature, and our user-friendly control panel incorporates a watchdog circuit, E-Stop, and single point reset for the most common faults. All versions are telematics ready.
Specifications
Manufacturer
Wacker Neuson
Model
E1250S
Year
2025
Category
Heaters
Subcategory
Hydronic Surface Heaters
Cooling fluid volume
3 qt US
Capacity Thaw max (Std)
2,475.7 ft2
Capacity Thaw max (w/acc)
3,767.4 ft2
Capacity in concrete curing (with accessory)
7,502.5 ft2
Capacity Frost max (w/acc)
11,248.4 ft2
Capacity Air Heat max (w/acc)
203,589.8 ft3
Output current 1~
20 A
Output voltage
120 V
Output frequency
60 Hz
Nominal power
4 KW
Nominal speed
1,800 1/min
Generator Rating 1~ (Continuous)
4.2 KW
Generator drive
direct
Nominal current
15 A
Nominal voltage
120 V
Quantity Circulation Loops, up to
1
Capacity Thaw (Std)
1,237.9 ft2
Capacity in concrete curing (Standard)
2,475.7 ft2
Throughput per loop
265 GPH US
Heat transfer fluid (HTF)
53.9 gal US
Hose pressure (normal operation)
108.8 psi
Heater, Net output (Diesel)
36 KW
Frost prevention (Standard)
3,767.4 ft2
Number of Hose Reels
1.0
Gross Axle Weight Rating
3,999.2 lb
Operating weight
3,106.3 lb
Dry Weight
3,329 lb
Gross vehicular weight
3,174.7 lb
Lift Bail - quantity
1.0
Run Time (75 % Prime Load)
90 hrs
Fuel Tank capacity
71.1 gal US
Utilizable tank capacity
68.2 gal US
Fuel Consumption no genset
1 GPH US
Run Time (100 %)
68 hrs
Brake
Electric brake
Hitch Type
Centrifugal Clutch
Tongue Weight, min
255.7 lb
Tongue Weight, max
295.4 lb
Tires
ST205/75R15
Length
140 "
Width
76 "
Height
72 "
