Description

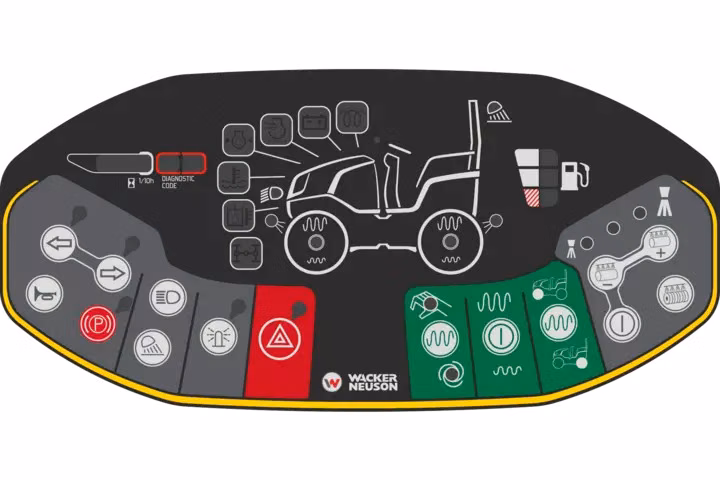

RC50 Drum rollers: Powerful compaction on any terrain Perfect view in all directions makes work with the Wacker Neuson single drum soil compactors safe and comfortable. Because of the compact design, the operator always has the working area and the drums in view from his seat. With a large departure angle and outstanding gradeability, it is easy to maneuver even on uneven terrain. The simple operation via an intuitively-designed display and joystick also make working easier and ensure that the operator is familiar with the machine in no time.
Specifications
Manufacturer
Wacker Neuson
Model
RC50p (5100047389)
Year
2025
Category
Compaction Roller
Subcategory
Drum Rollers
Nominal Engine speed
2,200 1/min
Engine Manufacturer
Kubota
Engine Designation
V3307-CR-T
Effective power
74.3 hp
Cylinder capacity
203.3 Inch3
Surface of the pad feet
17.5 Inch2
Gradeability
55 %
Gradeability max (without vibration)
60 %
Travel speed
0 - 7.8 m/H
Linear load with vibration Level I (front)
388.2 lb/in
Compaction force Level I (front)
20,907 lbf
Compaction force I (rear)
5,395 lbf
French classific, data/class
24,1/VPM1
Vibration frequency Level I (front)
30 Hz
Centrifugal force Level I (front)
15,512 lbf
Static Cross Slope
50 °
Ramming shoes (Number)
60.0
Operating weight
11,364.8 lb
Operating weight, max
12,191.57 lb
Dry Weight
11,078.2 lb
Gross vehicular weight
11,464 lb
Empty weight with cabin
11,078.2 lb
Empty weight with ROPS
10,593.2 lb
Operating weight with roll-over protective structure
10,879.8 lb
Operating weight with cabin
11,364.8 lb
Slope angle (front)
43 °
Slope angle (rear)
36 °
Standard (Effective power)
ISO 14396
Starter battery Voltage
12 V
Battery capacity (nom value)
152 Ah
Fuel Tank capacity
32.5 gal US
Exhaust gas limit values
EU Stage V
Exhaust aftertreatment
DOC-DPF
CO (NRTC)
0.1 g/KWh
HC + NOx (NRTC)
3 g/KWh
Pendulum angle +/-
10 °
Number of tires (rear)
2.0
Wheel load per tire (rear)
2,656.6 lb
Length
159.1 "
Height Ramming shoe
3.1 "
Curb clearance (left)
13 "
Curb clearance (right)
13 "
Total height with cabin
112.9 "
Total height with ROPS
110.6 "
Curb clearance right
2.6 "
Curb clearance left
2.6 "
Operating width
53.9 "
Ground clearance Middle
10.6 "
Turning radius inside
132.9 "
Wheelbase
85.4 "
Turning radius outside
186.8 "
Width over tires (rear)
59.1 "
Wheel size (rear)
TR 12.4-24 8 PR
