Description
RC70 Drum rollers: Powerful compaction on any terrain Only 4.81 yd. The RC70 measures the length and is therefore impressive when it is too tight for many other drum rollers. The RC70 drum roller especially comes into its own with work in confined, inner-city areas or in gardening and landscaping works. Intuitive operation via the display and joystick, and the adjustable operator's seat also provide a higher level of working comfort.
Specifications
Manufacturer
Wacker Neuson
Model
RC70 US (5100047415)
Year
2025
Category
Compaction Roller
Subcategory
Drum Rollers
Effective power
74.3 hp
Nominal Engine speed
2,200 1/min
Engine Manufacturer
Kubota
Engine Designation
V3307-CR-T

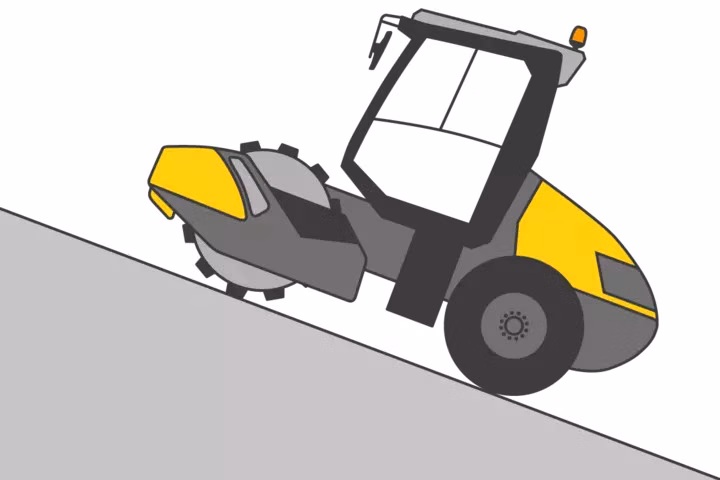

Gradeability
55 %
Gradeability max (without vibration)
60 %
Travel speed
0 - 7.8 m/H
Static linear load (front)
133.15 lb/in
Linear load with vibration Level I (front)
535.39 lb/in
Linear load with vibration Level II (front)
456.74 lb/in
Compaction force Level I (front)
35,295 lbf
Compaction force Level II (front)
30,124 lbf
Compaction force I (rear)
5,620 lbf
Compaction force II (rear)
5,620 lbf
French classific, data/class
30,9/VM2
Vibration frequency Level I (front)
30 Hz
Vibration frequency Level II (front)
42 Hz
Centrifugal force Level I (front)
28,101 lbf
Centrifugal force Level II (front)
21,357 lbf
Static Cross Slope
52 °
Operating weight
14,418.2 lb
Operating weight, max
17,725.18 lb
Dry Weight
14,131.6 lb
Gross vehicular weight
14,528.5 lb
Empty weight with cabin
14,131.6 lb
Empty weight with ROPS
13,646.6 lb
Slope angle (front)
38 °
Slope angle (rear)
42 °
Operating weight with roll-over protective structure
13,933.2 lb
Operating weight with cabin
14,418.2 lb
Cylinder capacity
203.3 Inch3
Standard (Effective power)
ISO 14396
Starter battery Voltage
12 V
Battery capacity (nom value)
152 Ah
Fuel Tank capacity
32.5 gal US
Exhaust gas limit values
US TIER 4
Exhaust aftertreatment
DOC-DPF
CO (NRTC)
0.1 g/KWh
HC + NOx (NRTC)
3 g/KWh
Pendulum angle +/-
10 °
Number of tires (rear)
2.0
Wheel load per tire (rear)
2,821.9 lb
Amplitude Level I (front)
0.0673 "
Amplitude Level II (front)
0.026 "
Length
173.6 "
Curb clearance (left)
13.8 "
Curb clearance (right)
13.8 "
Total height with cabin
115.2 "
Total height with ROPS
112.4 "
Curb clearance right
2.8 "
Curb clearance left
3.1 "
Operating width
66.1 "
Ground clearance Middle
12.5 "
Turning radius inside
130.3 "
Wheelbase
90.8 "
Turning radius outside
196.5 "
Width over tires (rear)
64.6 "
Wheel size (rear)
AW 14.9-24 8 TL
