Description

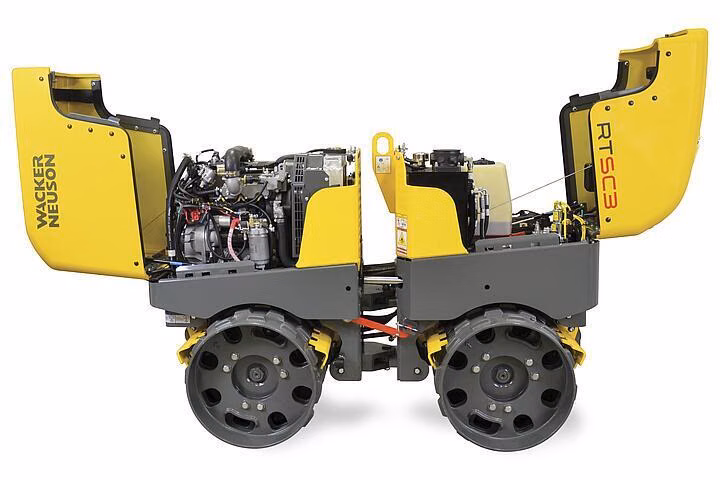

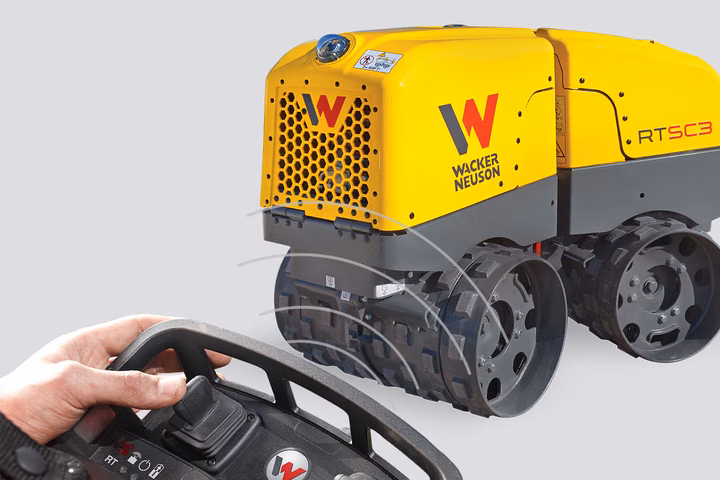

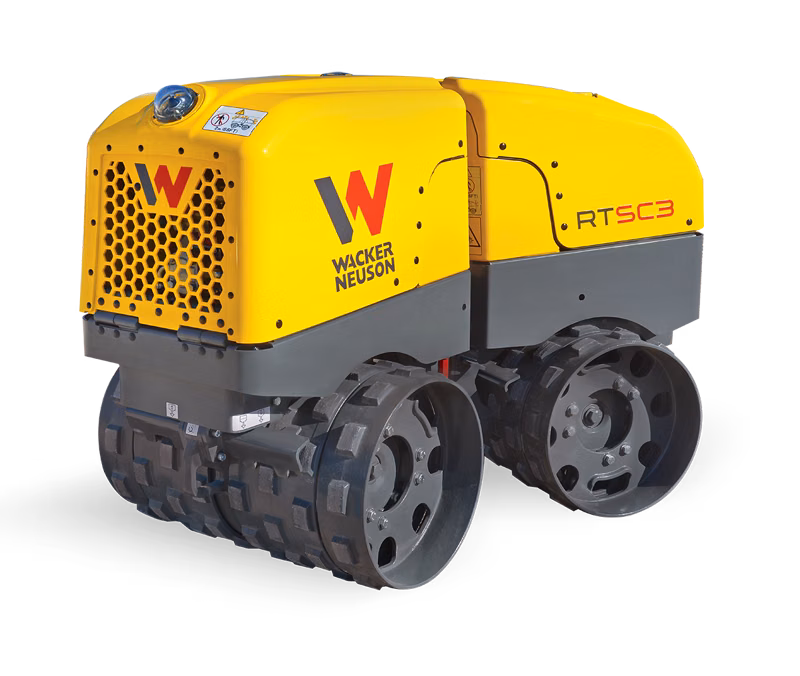

RTLx-SC3 Trench Roller: smart remote-controlled trench roller The RT trench roller with the SC3 infrared-remote control offers proven compaction results with safer operation. The smart control uses an infrared signal with line-of-sight control. The articulated trench roller with padfoot drums offers below the axle exciter in each drum to allow for the efficient transfer of compaction energy to the soil for superior compaction results. The compaction of excavations and sub bases of foundations, roads and parking lots is the RT's specialty.
Specifications
Manufacturer
Wacker Neuson
Model
RTLx-SC3 - NAM Standard
Year
2026
Category
Compactors
Subcategory
Rollers
Area capacity
10,656.4 ft2/h
Gradeability
50 %
Gradeability max (without vibration)
50 %
Centrifugal force max
15,376.94 lbf
Travel speed
0.8 - 1.6 m/H
Force/Drum (dynamic) front
7,644 lbf
Force/Drum (dynamic) rear
7,644 lbf
Exciter type
Hydraulic
Travel speed (reverse)
0.8 - 1.6 m/H
Operating weight
3,229.8 lb
Dry Weight
3,148.2 lb
Number of Pads
192,0
Output current 1~
33 A
Output voltage
12 V
Nominal Engine speed
3,600 1/min
Remote Control Bat Capacity
16 h
Charging Time
2 h
Tank capacity
7.9 gal US
Exciter oil type
Mobilith SHC 220
Fuel Tank capacity
6.3 gal US
Fuel consumption
1.2 GPH US
Brake
Hydr parking brake
Steering
hydraulics
Shipping weight
3,403.9 lb
Oscillation Angle
0 °
Length
73 "
Width
32.3 "
Height
49.9 "
Thickness Drum Sheet
0.4 "
Side clearance left
0 "
Side clearance right
0 "
Turning radius inside
63 "
Drum width
15 "
Wheelbase
39.4 "
Drum diameter (minor)
20.5 "
Drum diameter (major)
21.7 "
Pad Area
3.6 Inch2
Pad Height
0.6 "
Remote Control Range
65.6 Foot
Steering angle max
32
Length for shipping
89 "
Width for shipping
35.1 "
Height for shipping
55.9 "
