Description

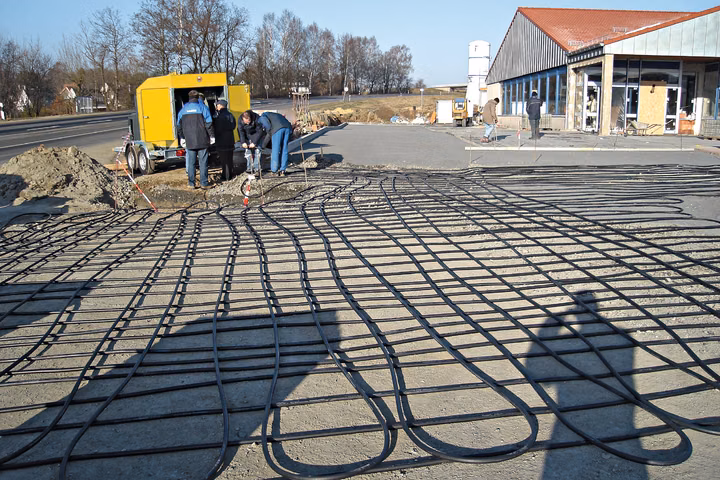

E3000 Hydronic Heaters: dual reeled hydronic heater for the toughest jobs .Engineered for reliable performance and trouble-free starts for up to 140 hours of run time, the E3000 will provide maximum flow and ensure consistent heat delivery for thawing and curing applications. The E3000 thaws or cures up to 557 sq. m With accessories this heater will cure up to 1672 sq. m or provide 49703 sq. m of dry heat at 83% efficiency, the highest in the industry.
Specifications
Manufacturer
Wacker Neuson
Model
E3000 (5100055568)
Year
2026
Category
Heaters
Subcategory
Hydronic Surface Heaters
Quantity Circulation Loops, up
2
Supplementary equipment
Fuel Filter
Capacity Thaw (Std)
3,003.2 ft2
Capacity Thaw max (Std)
5,995.5 ft2
Capacity Thaw max (w/acc)
5,995.5 ft2
Capacity in concrete curing (Standard)
5,995.5 ft2
Capacity in concrete curing (with accessory)
17,997.4 ft2
Capacity Frost max (w/acc)
26,996.1 ft2
Capacity Air Heat max (w/acc)
524,989.9 ft3
Throughput per loop
265 GPH US
Heat transfer fluid (HTF)
114.9 gal US
Hose pressure (normal operation)
108.8 psi
Frost prevention (Standard)
8,998.7 ft2
Number of Hose Reels
2.0
Efficiency (Diesel)
83 %
Gross Axle Weight Rating
5,079.5 lb
Operating weight
8,285 lb
Dry Weight
6,810.1 lb
Gross vehicular weight
8,285 lb
Output frequency
60 Hz
Voltage Regulation - Steady State
6 %
Generator Manufacturer
Mecc Alte
Generator specification
Brushless with capacitor
Cylinder capacity
62.7 Inch3
Operating Engine speed
1,800 1/min
Temperature monitor
digital
Run Time (75 % Prime Load)
108 hrs
Fuel Tank capacity
230.1 gal US
Utilizable tank capacity
221.9 gal US
Fuel Consumption no genset
2.7 GPH US
Fuel Consumption with genset
3.4 GPH US
Run Time (100 %)
81 hrs
Brake
Electric brake
Tongue Weight, min
809.1 lb
Tongue Weight, max
1,089.1 lb
Tires
22575R15 D
Shipping weight with Trailer
6,810.1 lb
Length
181.1 "
Width
90.6 "
Height
94.5 "
Length hose
2,998.7 Foot
